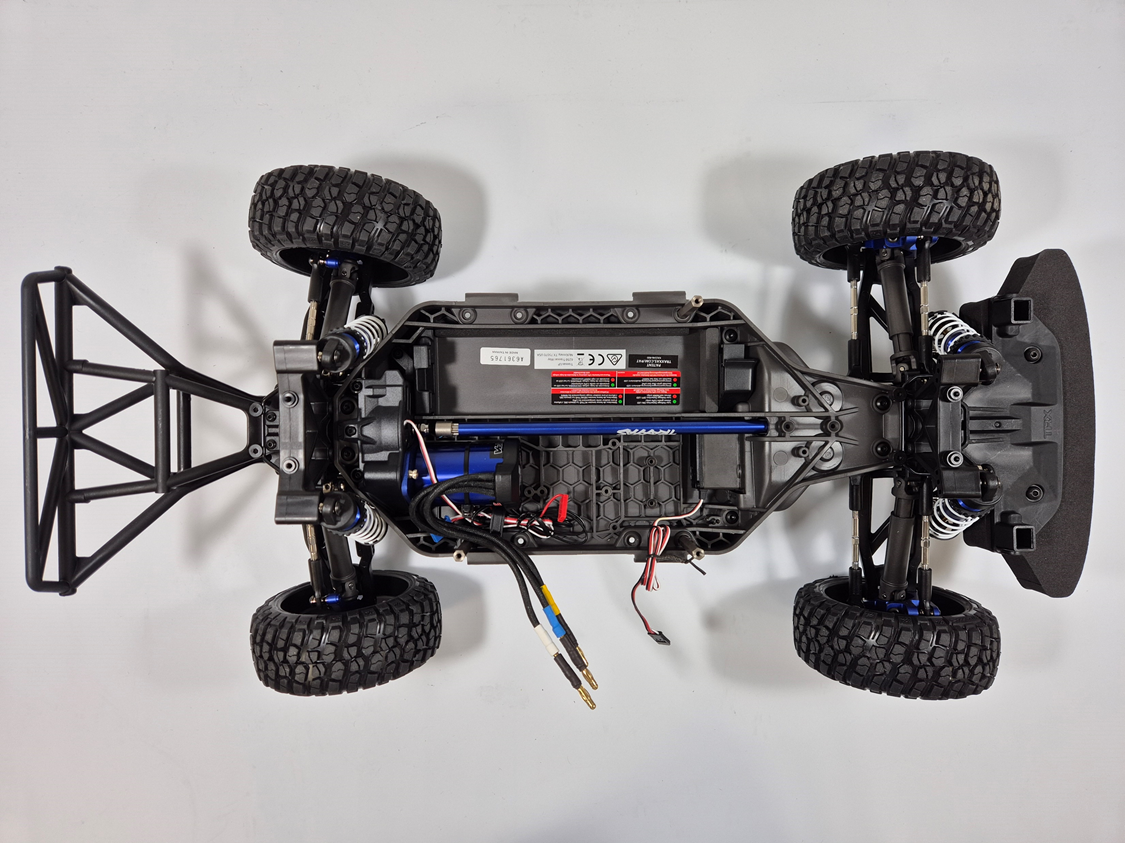

Lower Chassis
Parts (Lower Chassis)
| No. | Part No. |
Name (related Tool) |
Q'ty | Picture |
|---|---|---|---|---|
| 1 | F1 | Hex Standoff 6mm x 45mm | 3 |
|
| 2 | F5 |
Hex Bolt M3 x 10L
(with T2) |
3 |
|
| 3 | X6 | Traxxas Front Bumper Foam | 1 |
|
| 4 | X7 | Traxxas Top Cover for Front Bumper Foam | 1 |
|
| 5 | X8 | Traxxas Bottom Cover for Front Bumper Foam | 1 |
|
Tools (Lower Chassis)
| No. | Tool No. |
Name (related fastener) |
Q'ty | Picture |
|---|---|---|---|---|
| 1 | T2 |
Hex Wrench 2mm (for F5) |
1 |
|
| 2 | T3 | Hex Wrench 2.5mm | 1 |
|
Replacing the front bumper

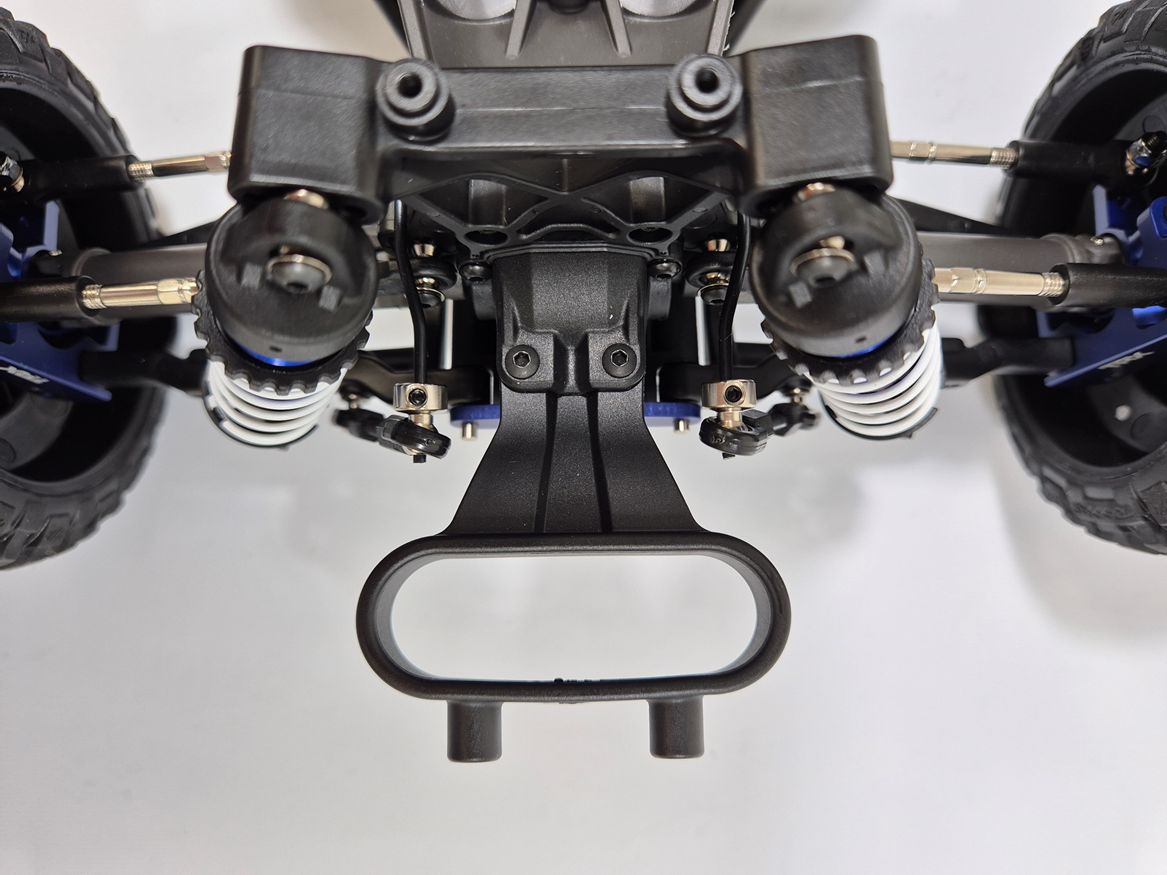

The Original Front Bumper

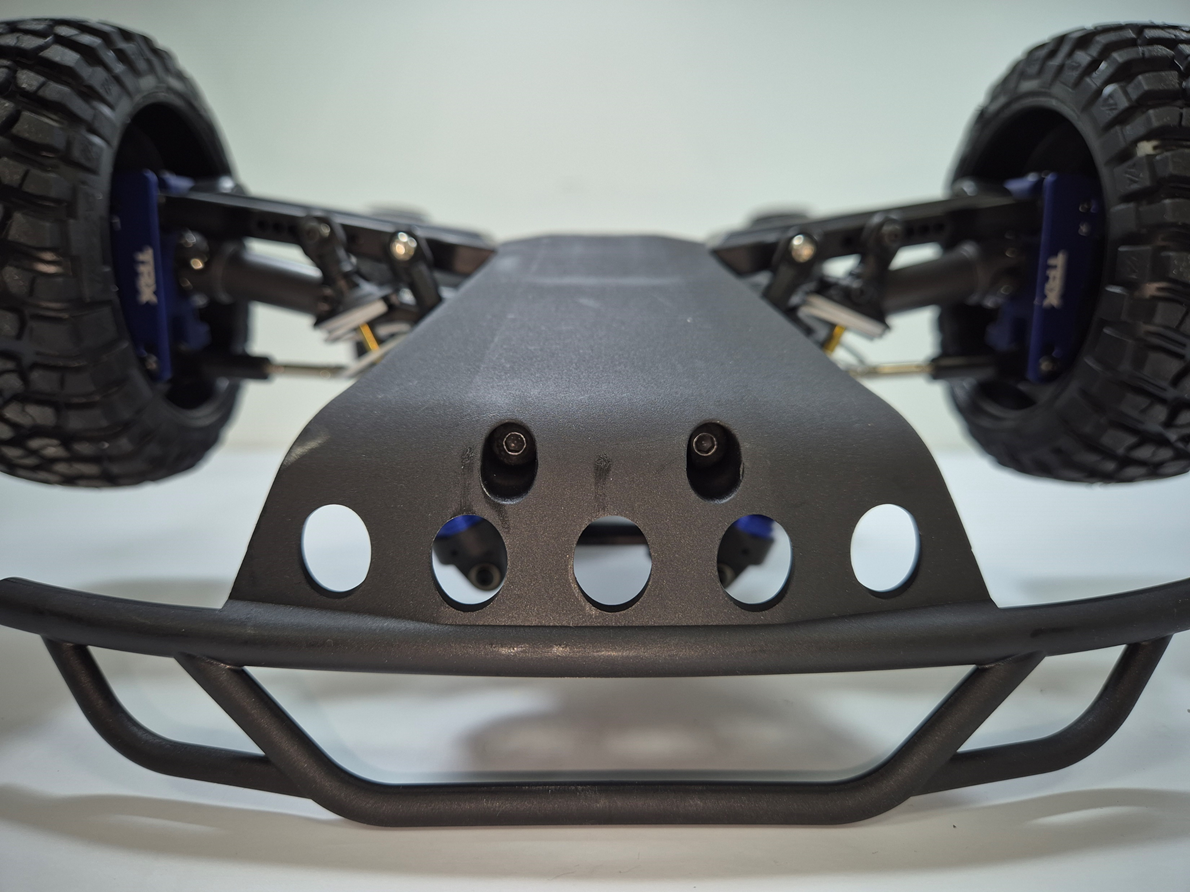

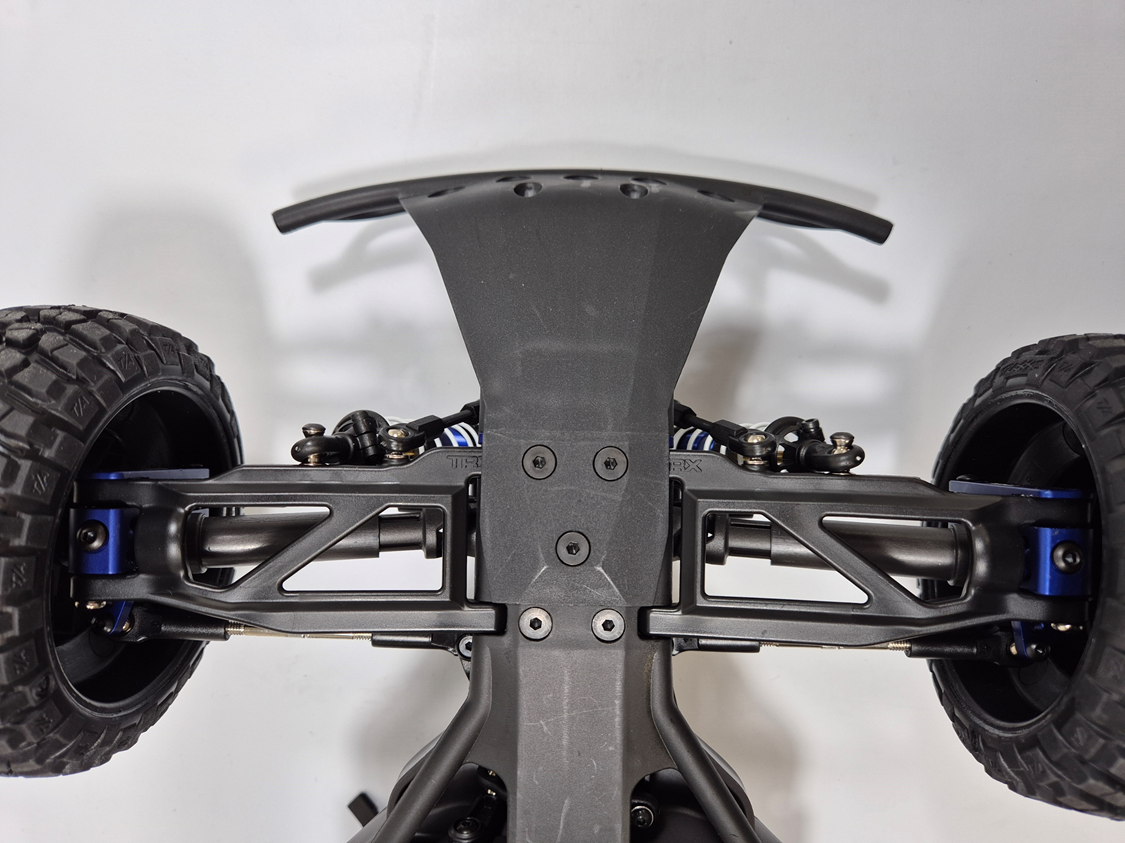

Bottom view (left) and Upside
downed Front view (right)

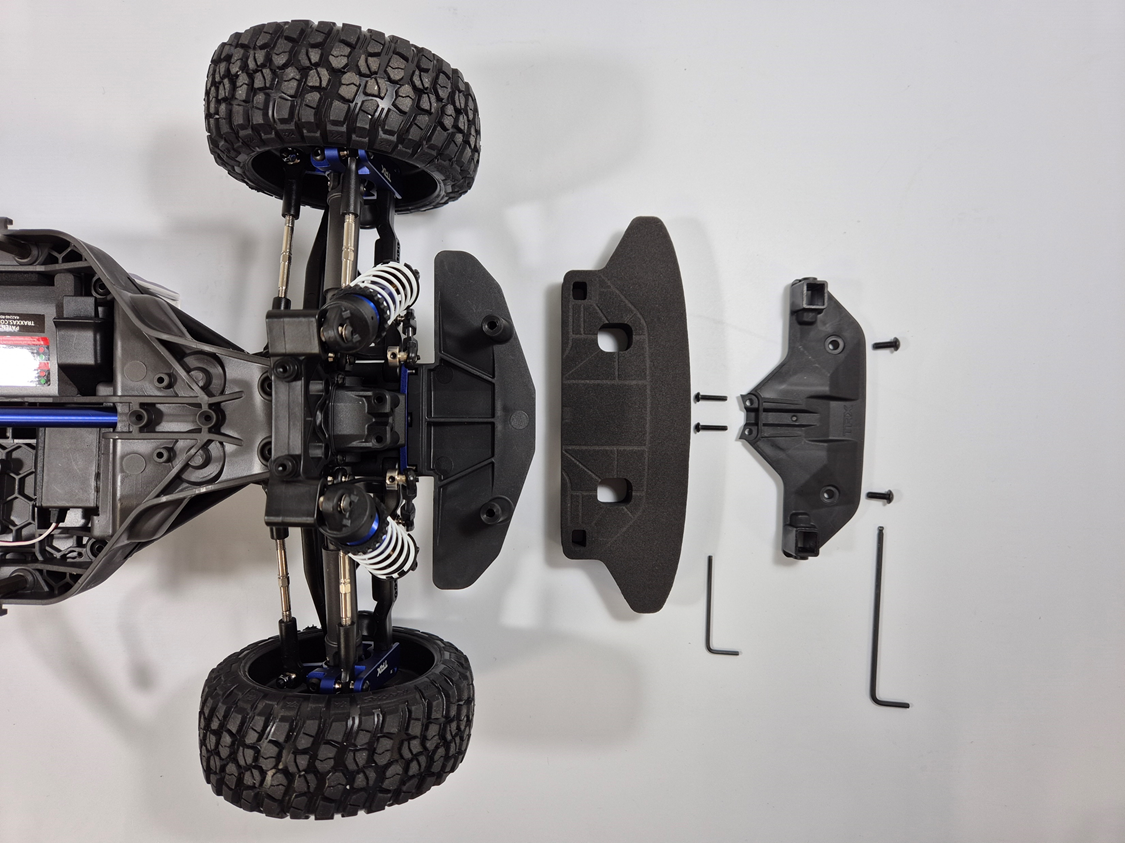

Disassembling front bumper
Partially disassembled front
bumper (left) and the
remaining part (right)

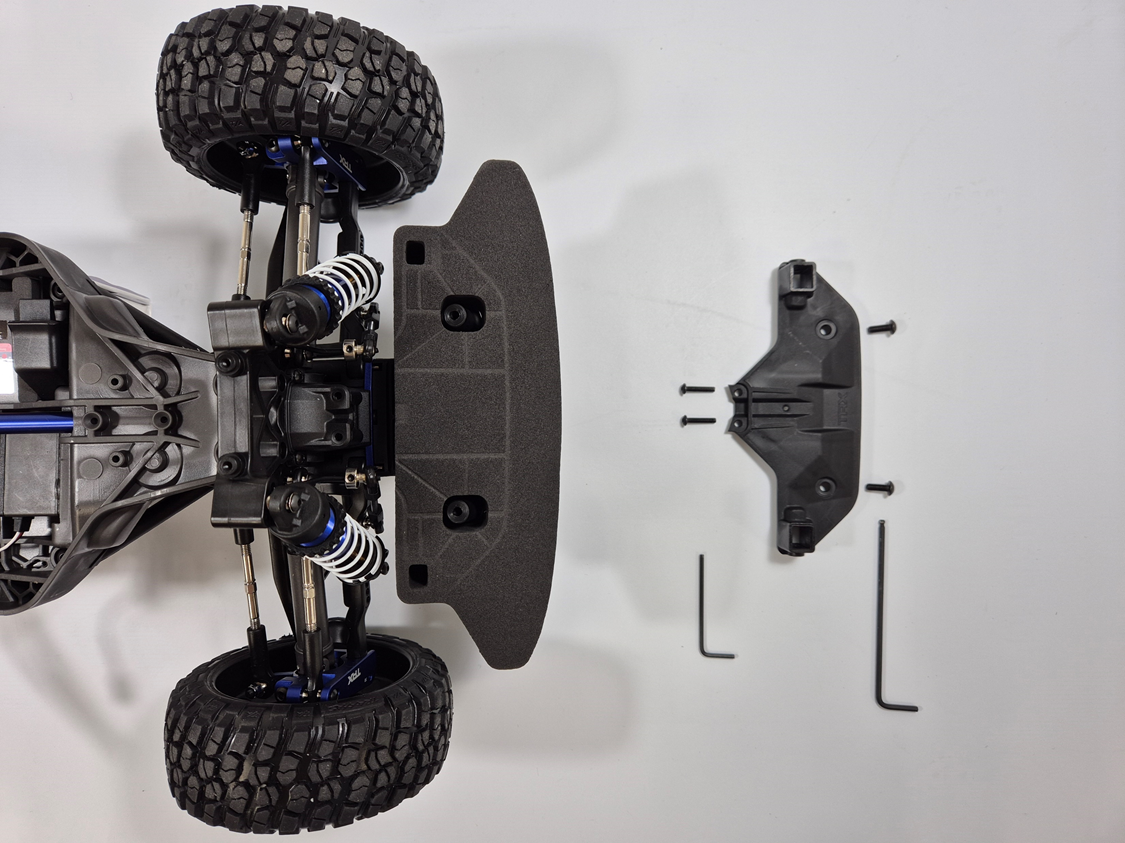

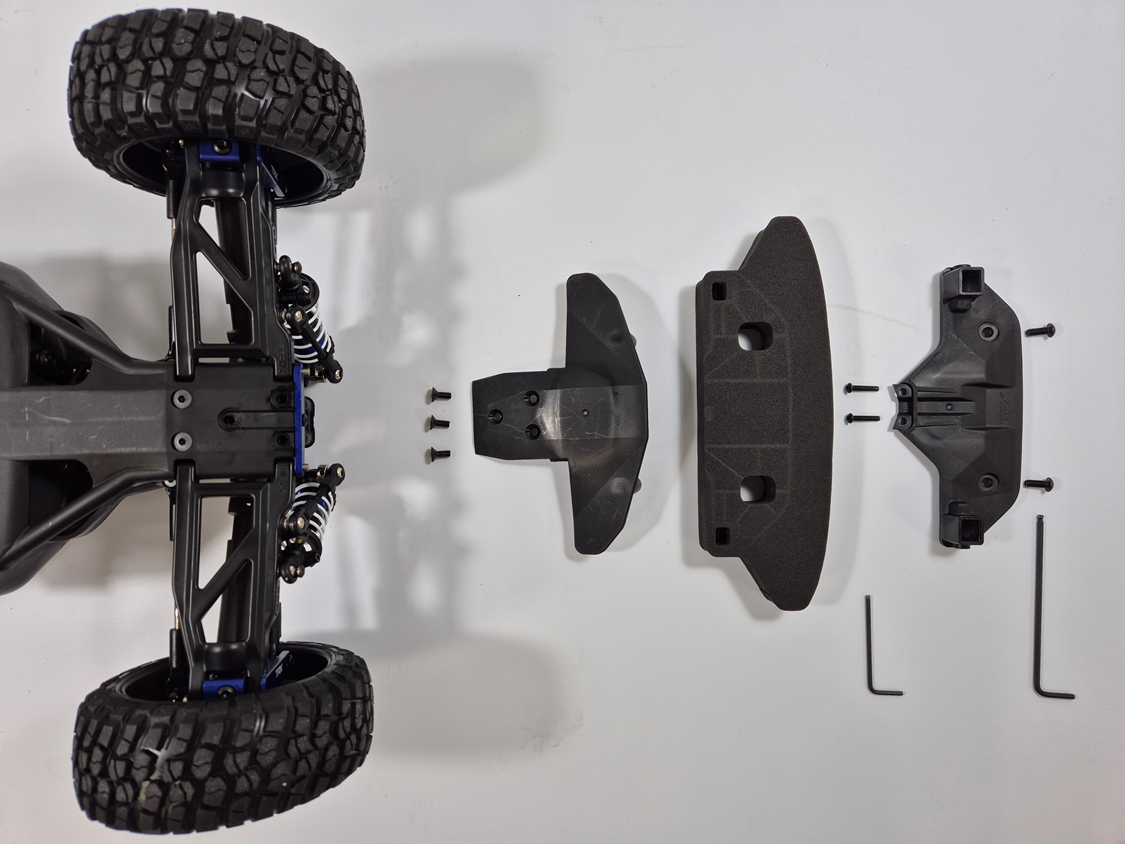

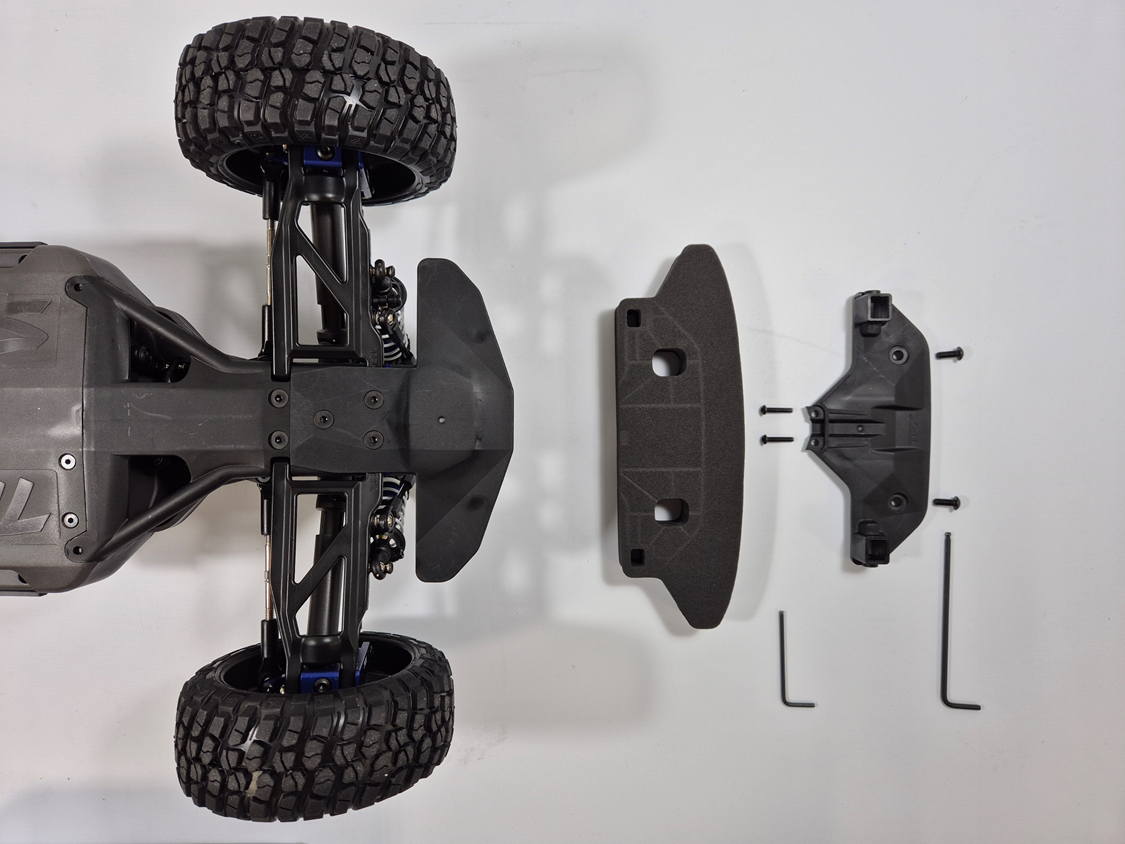

Fully disassembled front
bumper

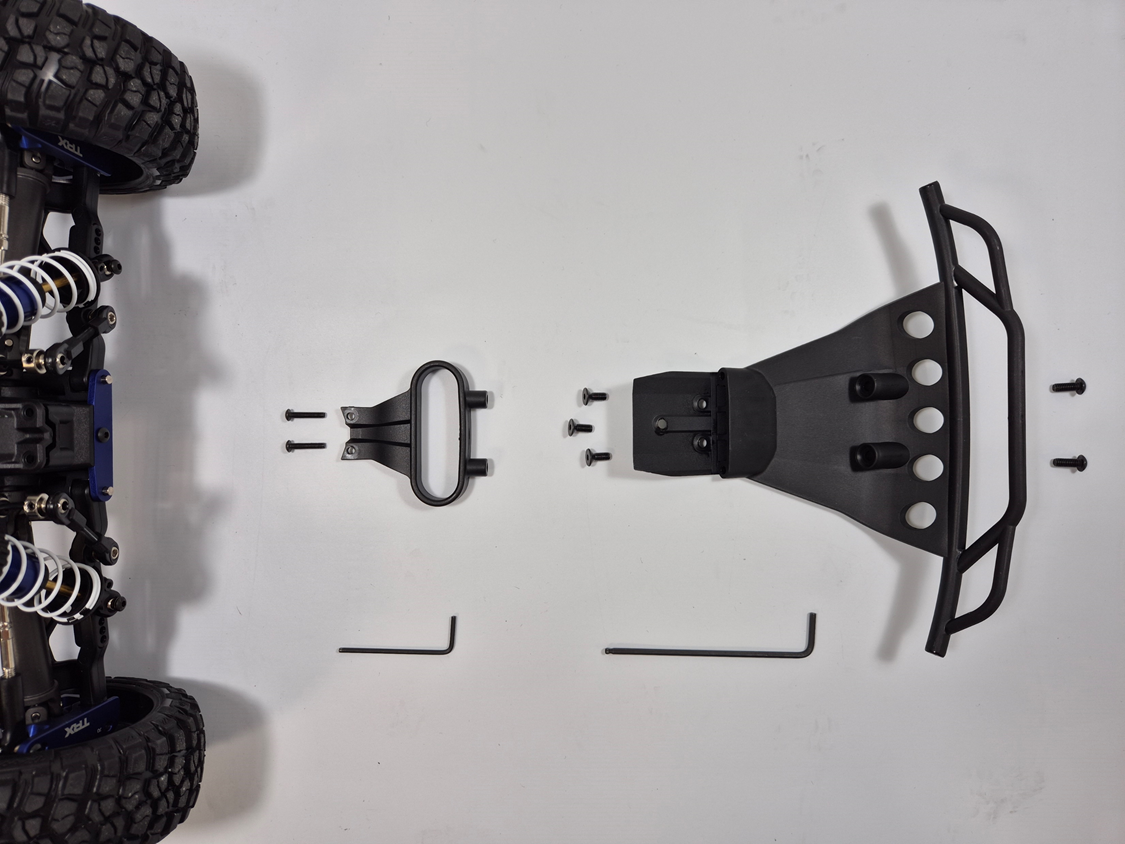

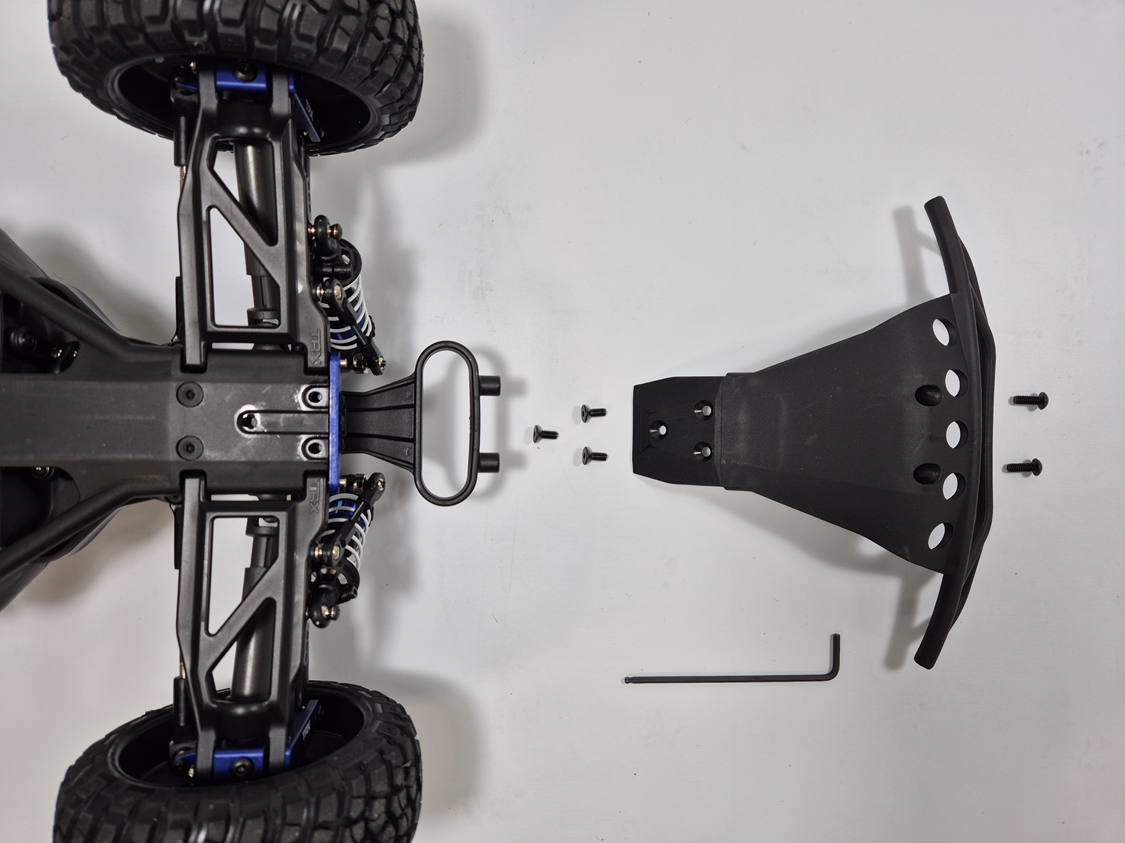

Assemble new front bumper parts step by
step

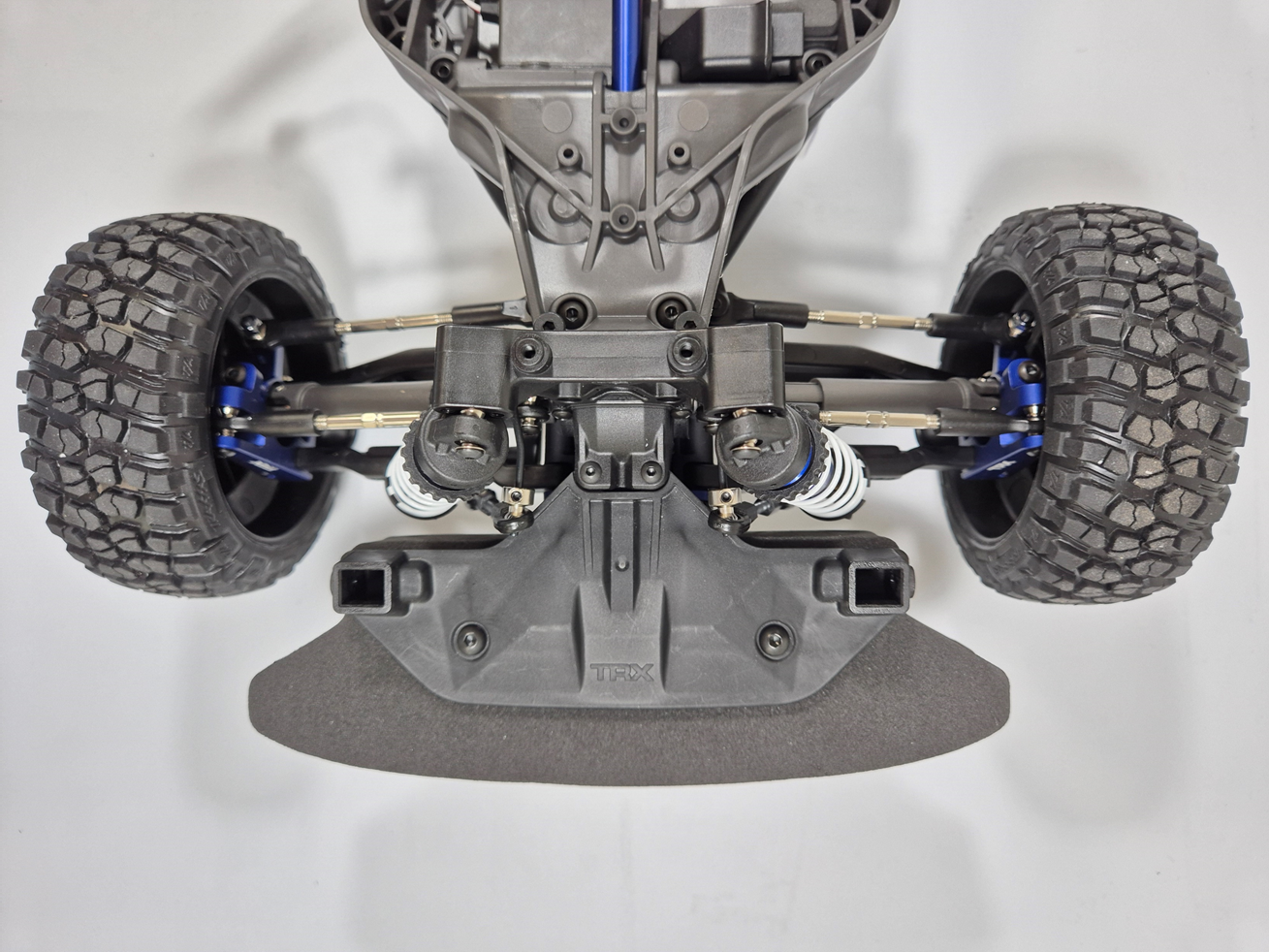

Fully assembled new front bumper (top view)

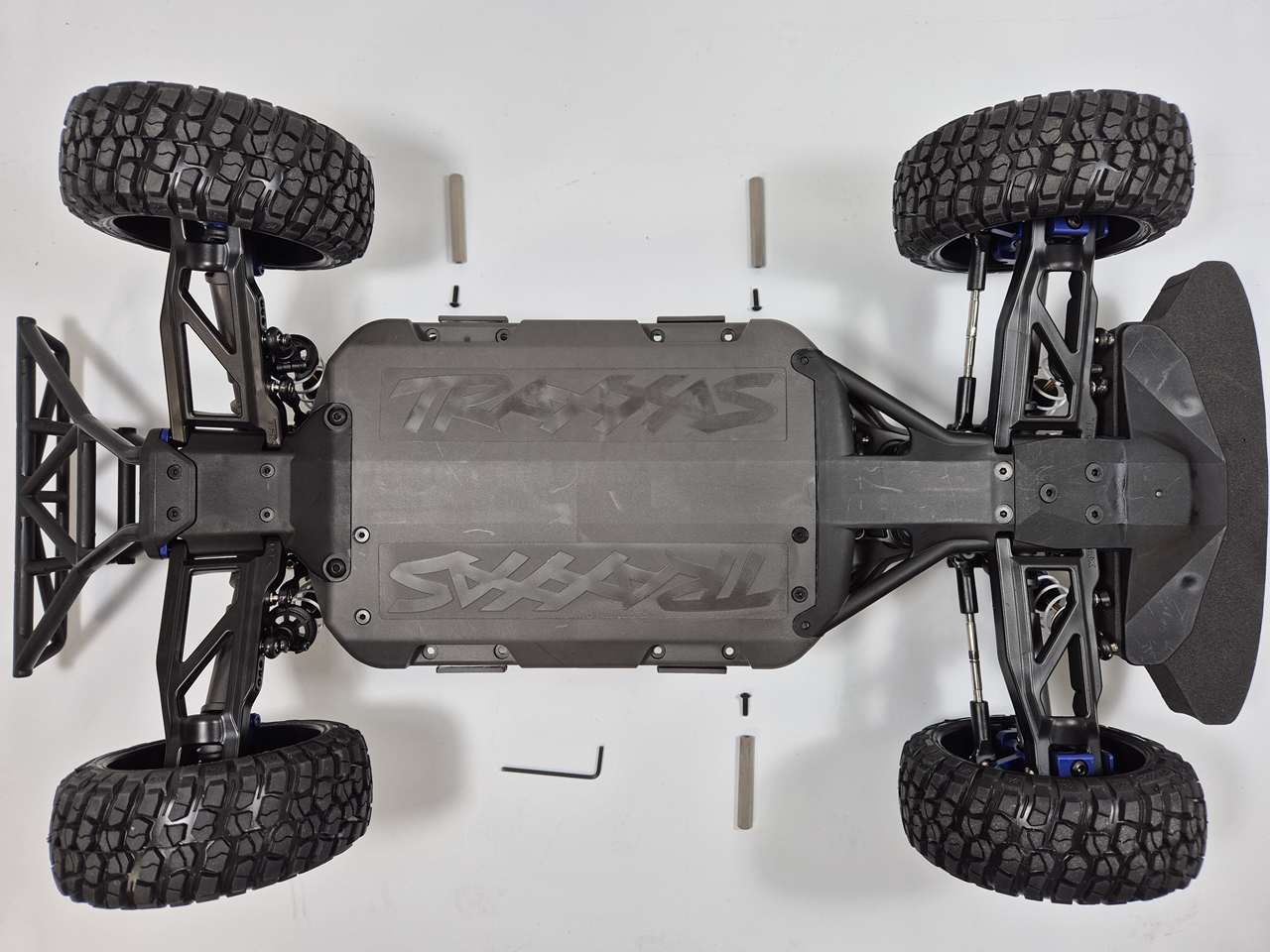

Assemble three standoffs to the lower chassis.

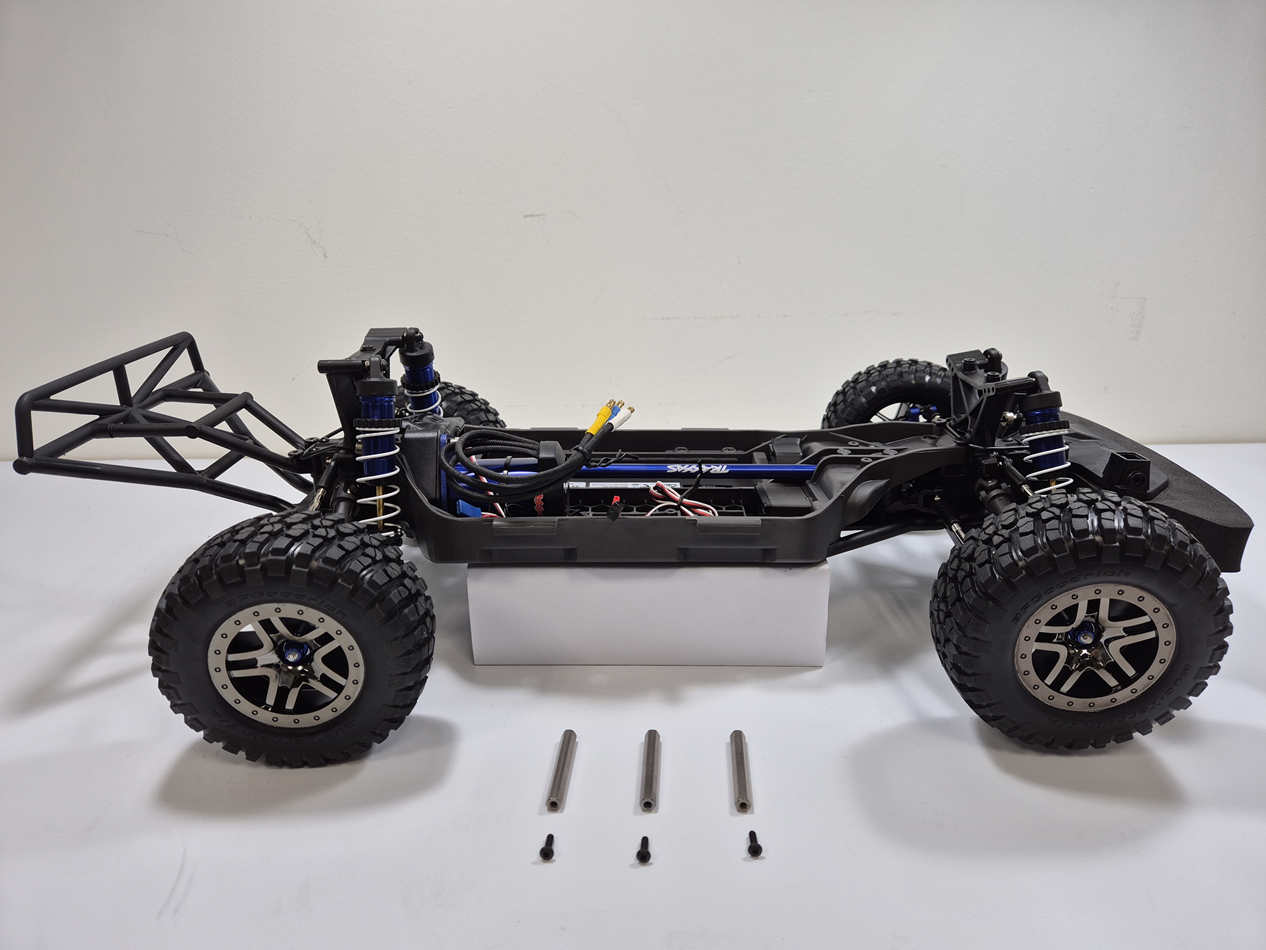

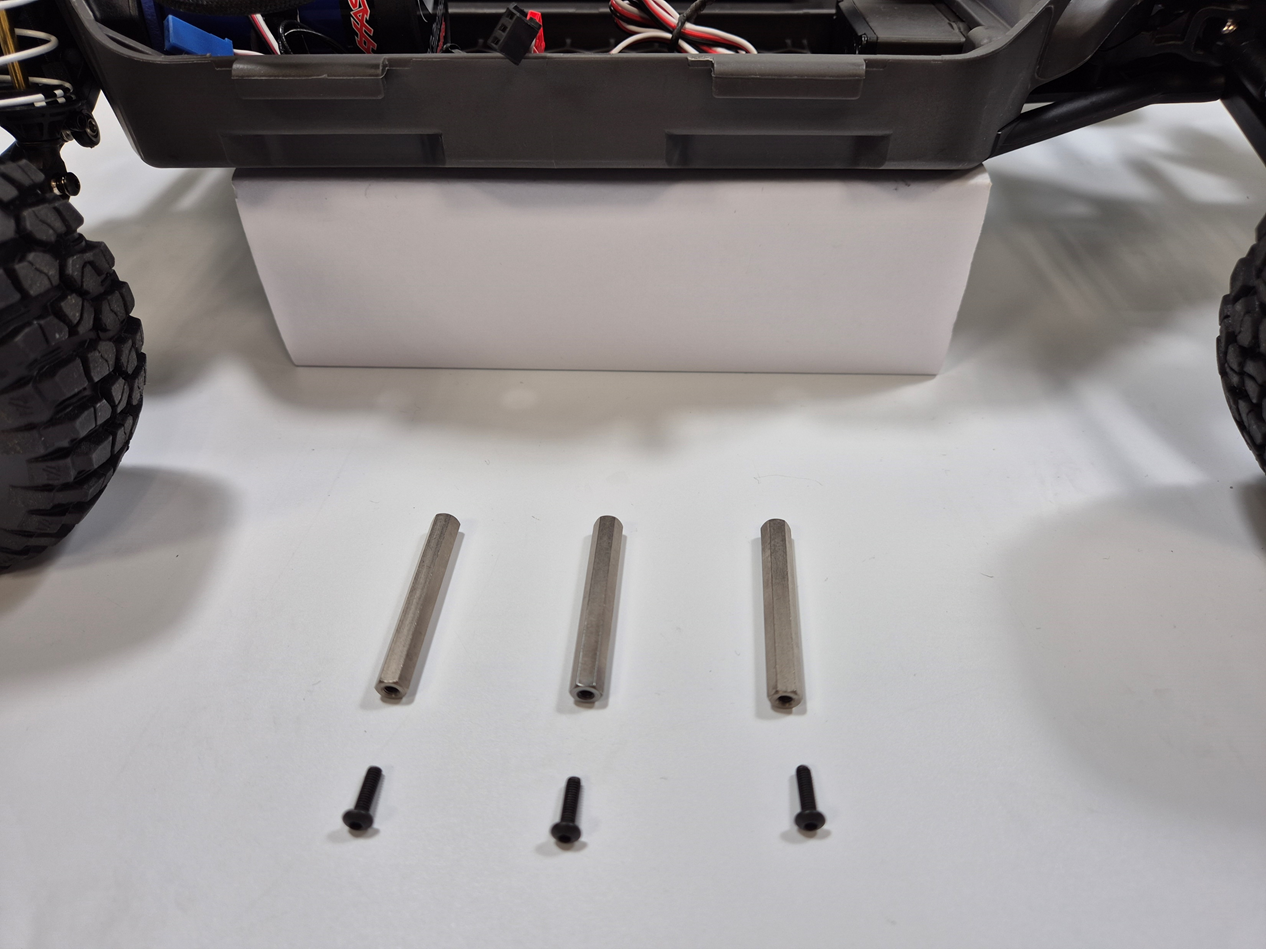

Three standoffs (F1), bolts (F5) and Hex
Wrench 2mm (T2)

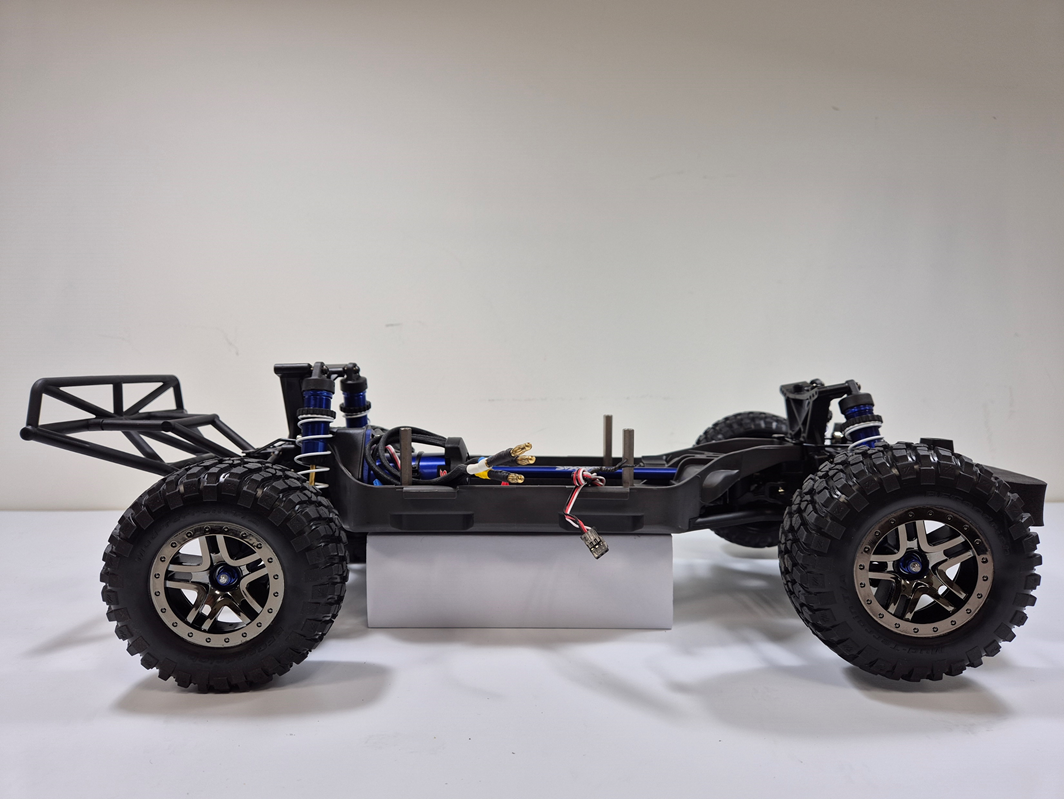

Standoffs assembled to the lower chassis

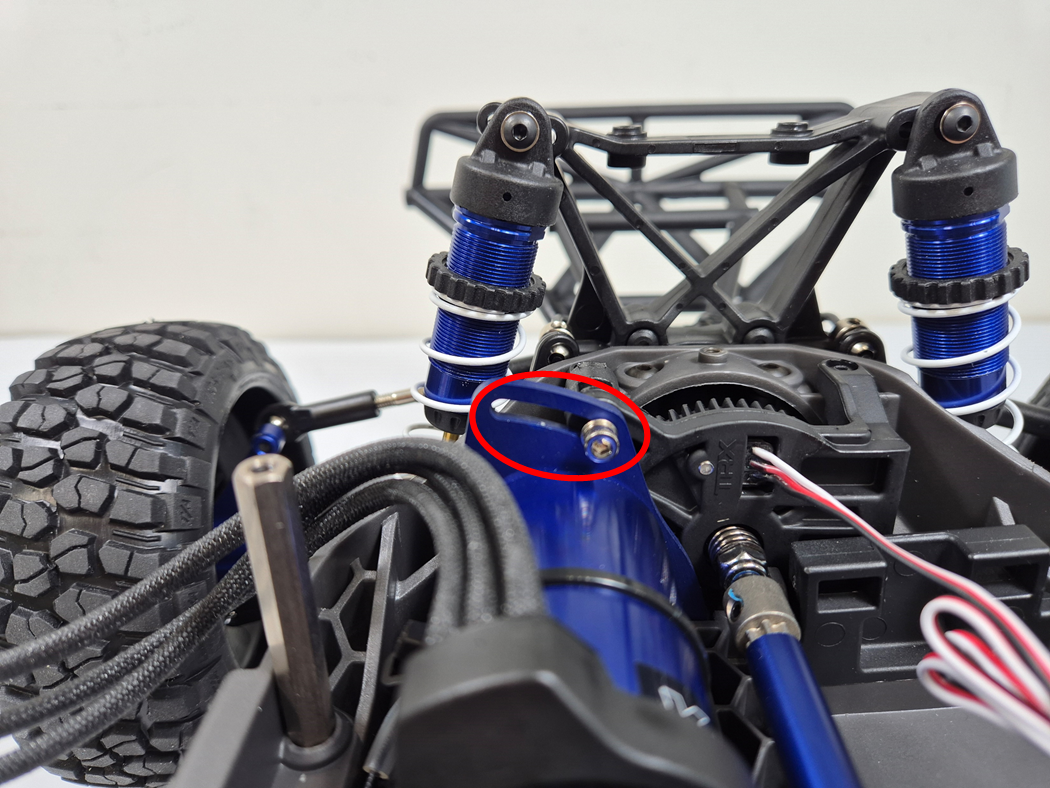

Adjust Traction Motor if necessary
Tools (Adjust Traction Motor if necessary)
| No. | Tool No. | Name | Q'ty | Picture |
|---|---|---|---|---|
| 1 | T2 | Hex Wrench 2mm | 1 |
|
| 2 | T3 | Hex Wrench 2.5mm | 1 |
|

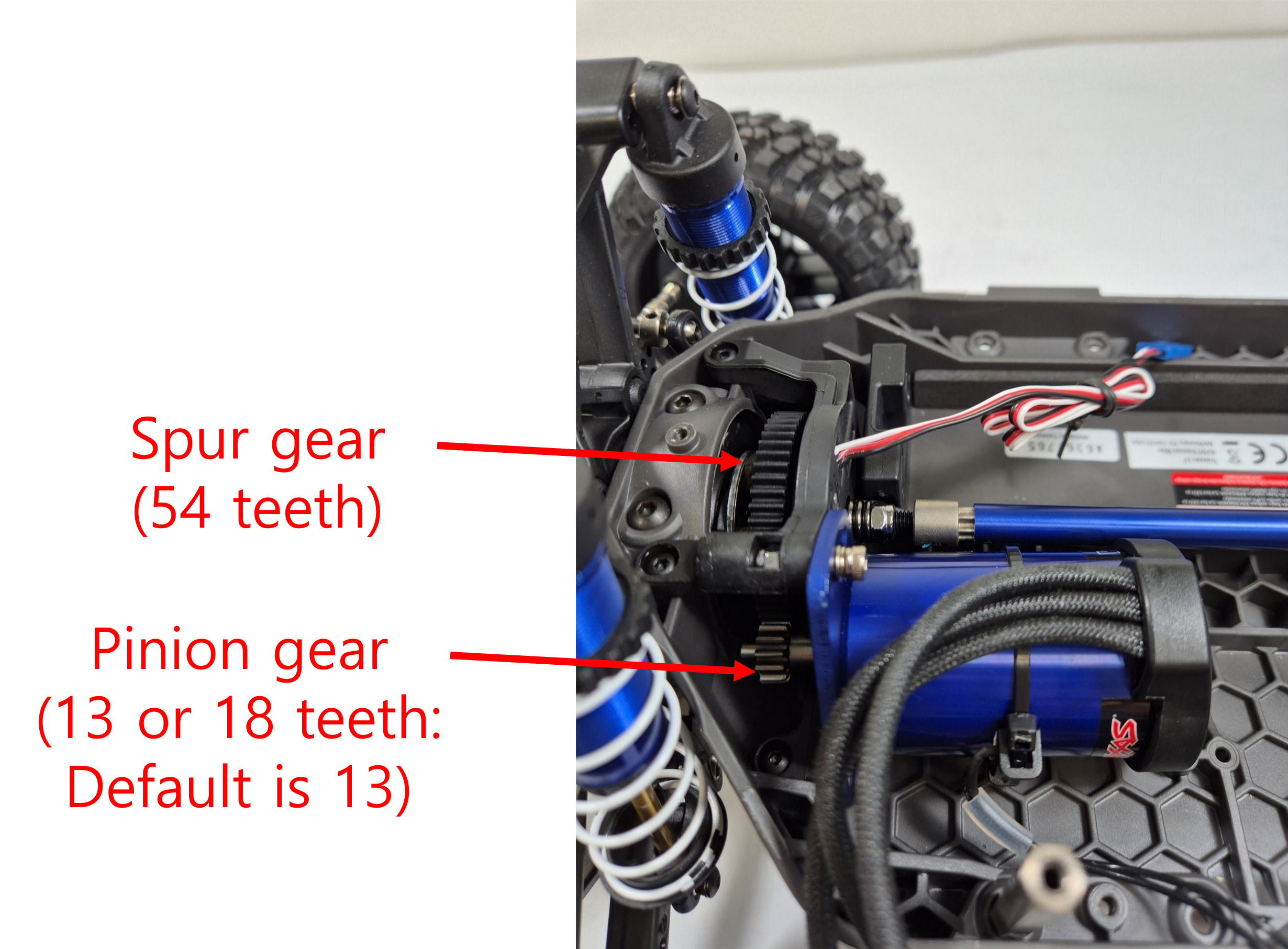

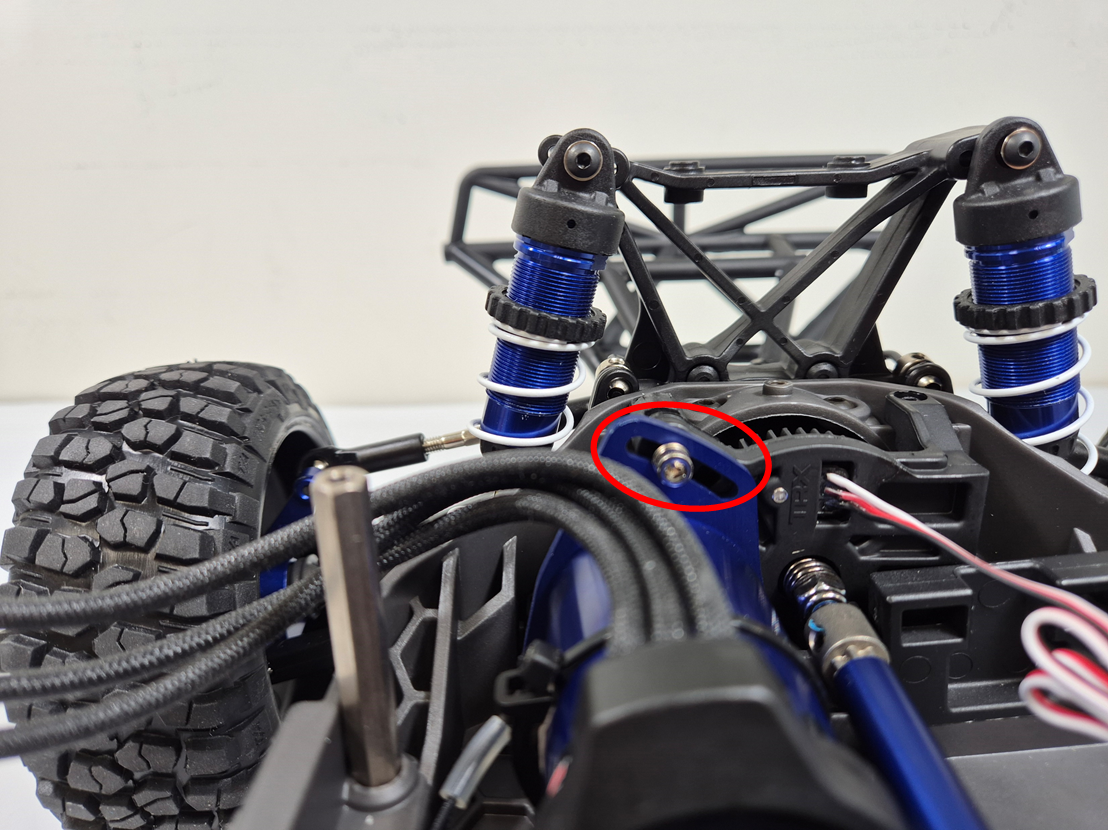

For performance optimization, the meshing
between the pinion gear and spur gear of
the Traxxas Slash 4x4 can be adjusted.
Pinion gear
is not tightly geared up with
Spur gear
Pinion gear
is tightly geared up with Spur gear
How to
detach
the
pinion gear

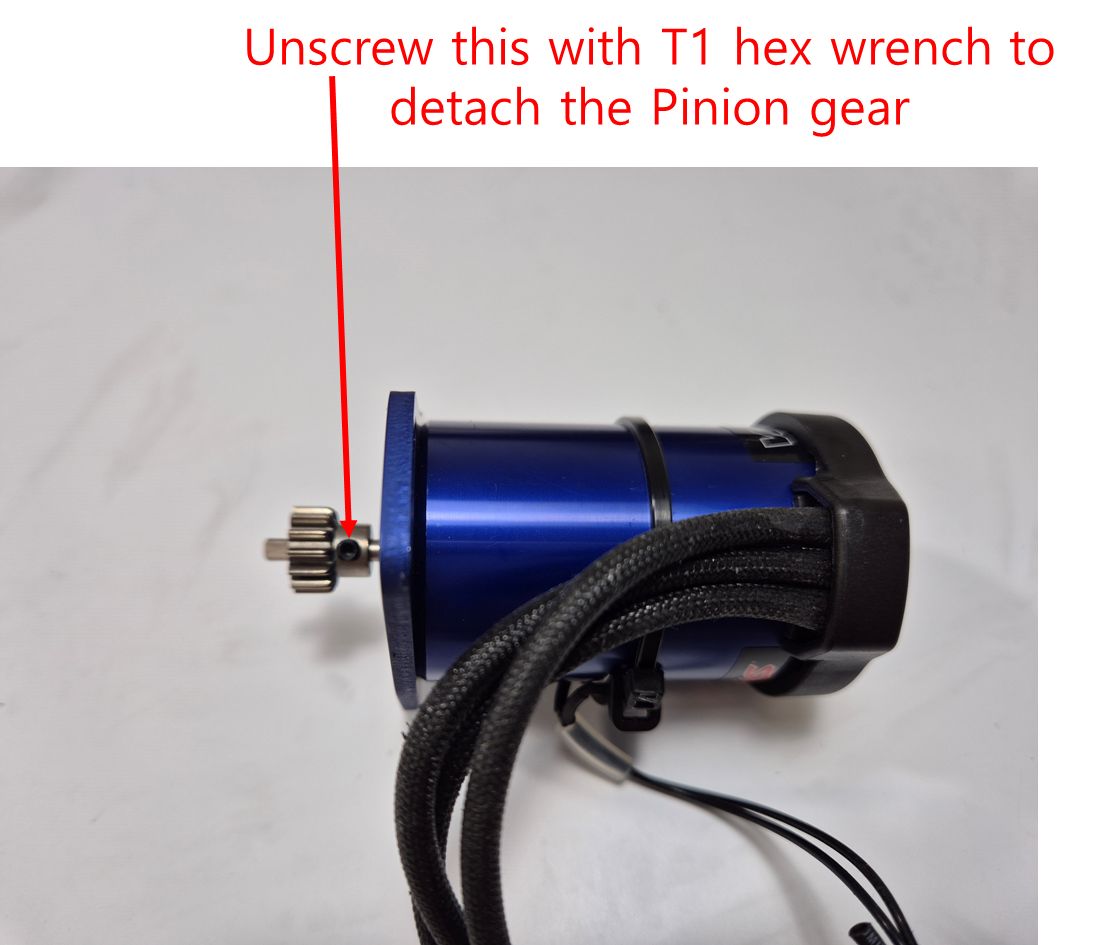

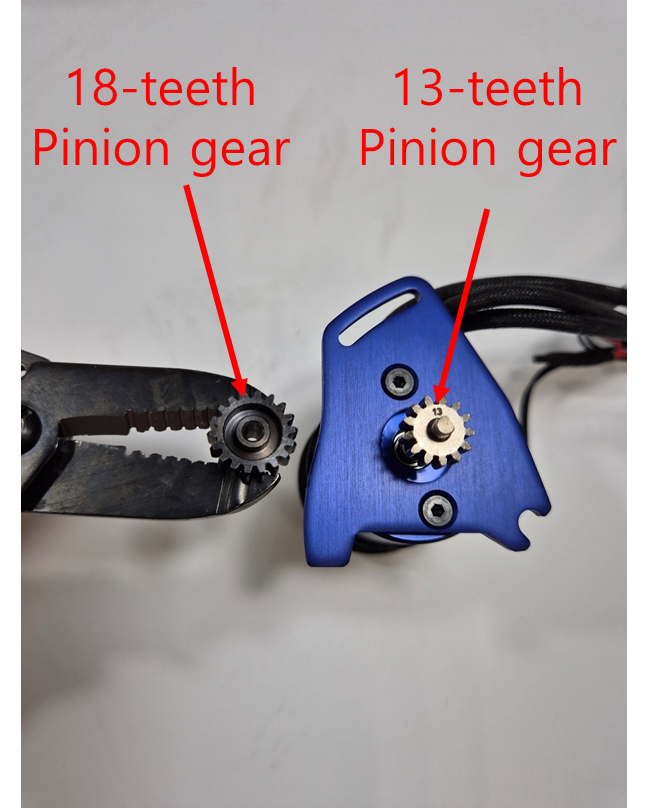

from BLDC motor
Upper Chassis
Parts (Upper Chassis)
| No. | Part No. |
Name (related Tool) |
Q'ty | Picture |
|---|---|---|---|---|
| 1 | F6 |
Hex Bolt M3 x 6L
(with T3) |
19 |
|
| 2 | F10 |
Hex Bolt M5 x 16L
(with T5) |
2 |
|
| 3 | F12 | M3 Plain Washer 3.2mm x 0.5mm | 2 |
|
| 4 | K1 | Deck Plate | 1 |
|
| 5 | K14 | Long Wing | 2 |
|
| 6 | K15 | Short Wing | 2 |
|
| 7 | E10 | VESC Controller | 1 |
|
Tools (Upper Chassis)
| No. | Tool No. |
Name (related fastener) |
Q'ty | Picture |
|---|---|---|---|---|
| 1 | T3 |
Hex Wrench 2.5mm
(for F6) |
1 |
|
| 2 | T5 |
Hex Wrench 4mm (for F10) |
1 |
|

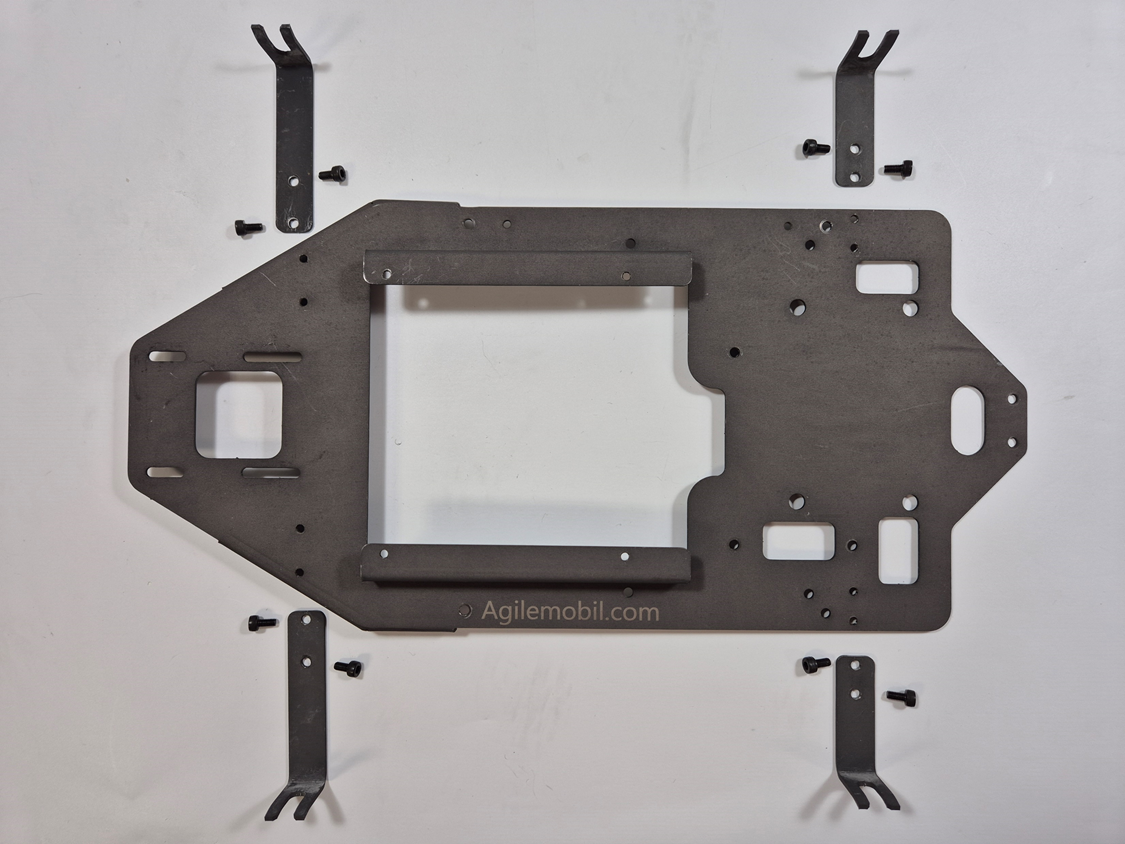

Wing parts view

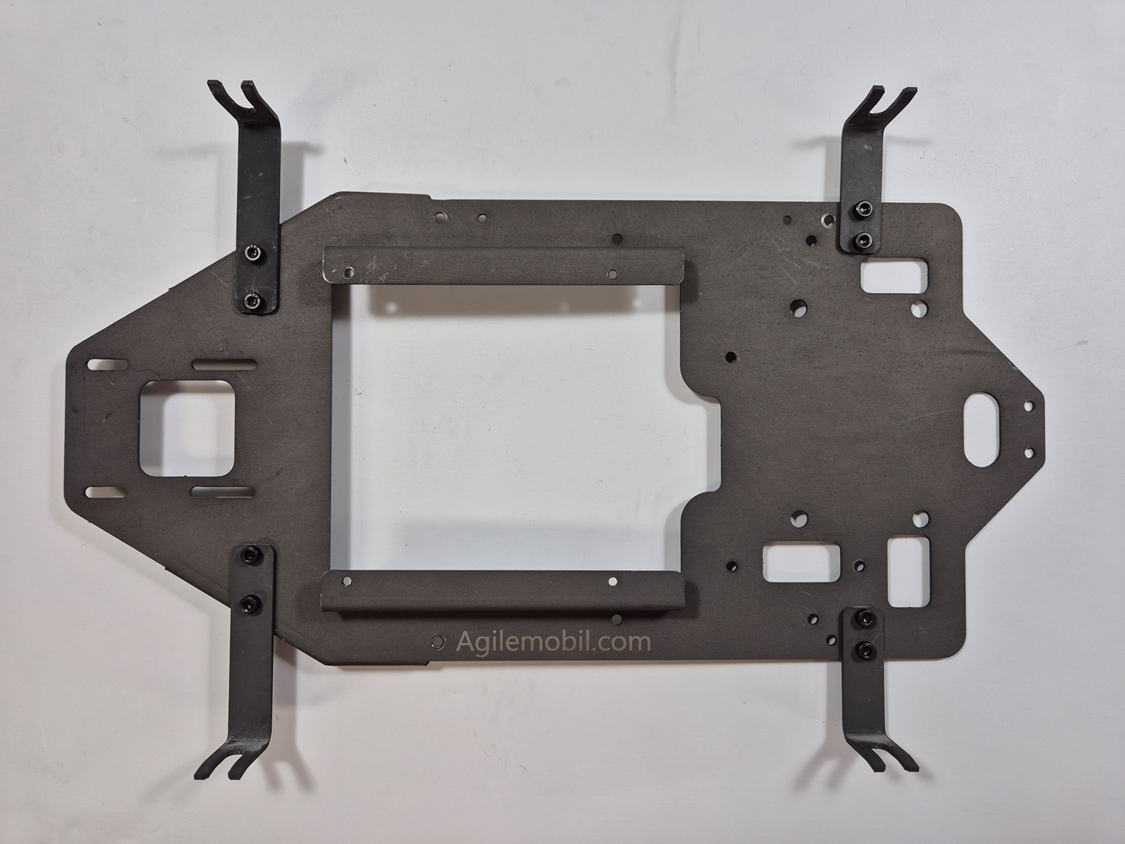

Wing parts assembled

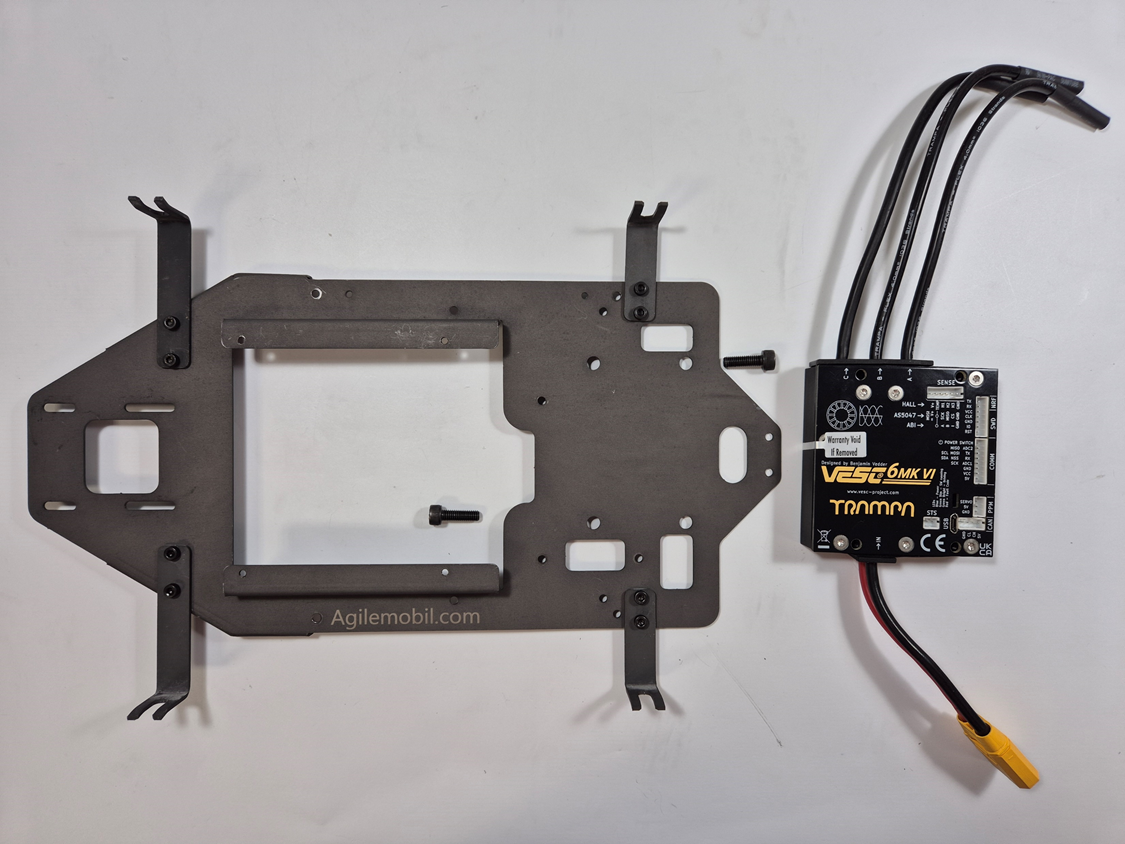

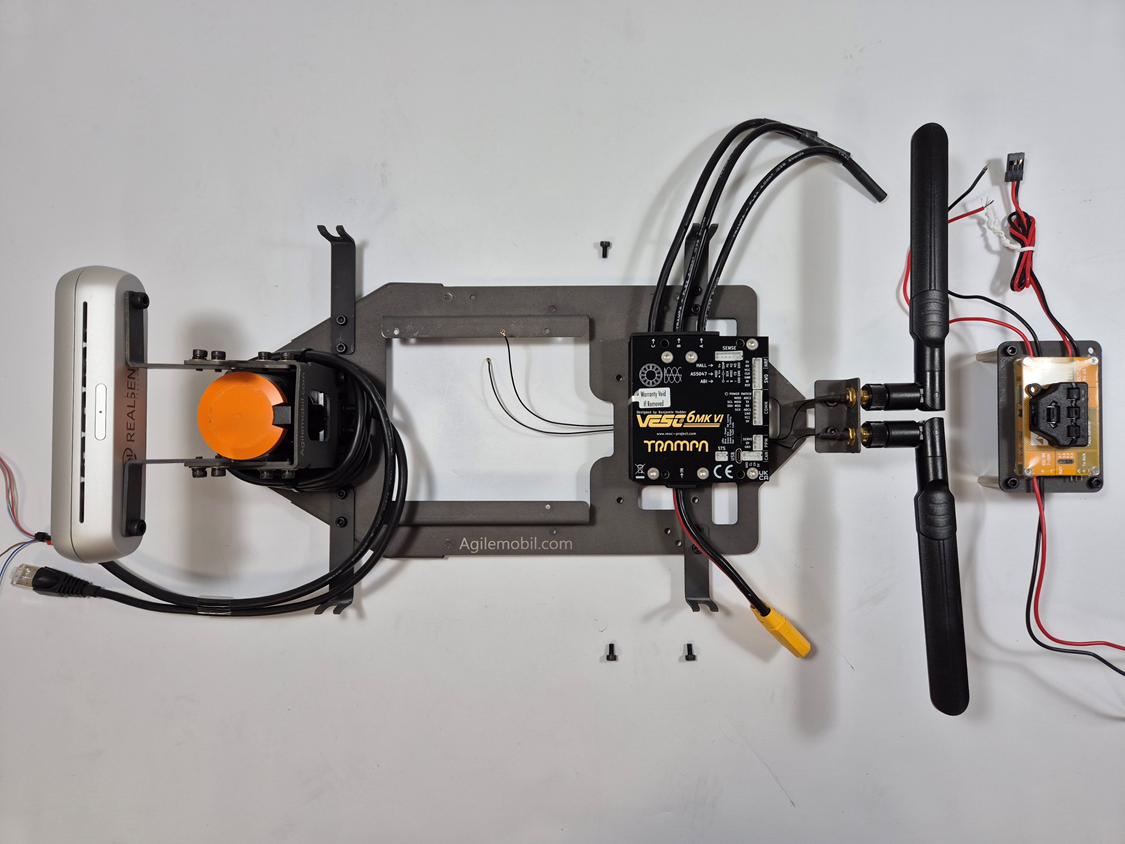

VESC parts view
VESC positioned on the deck

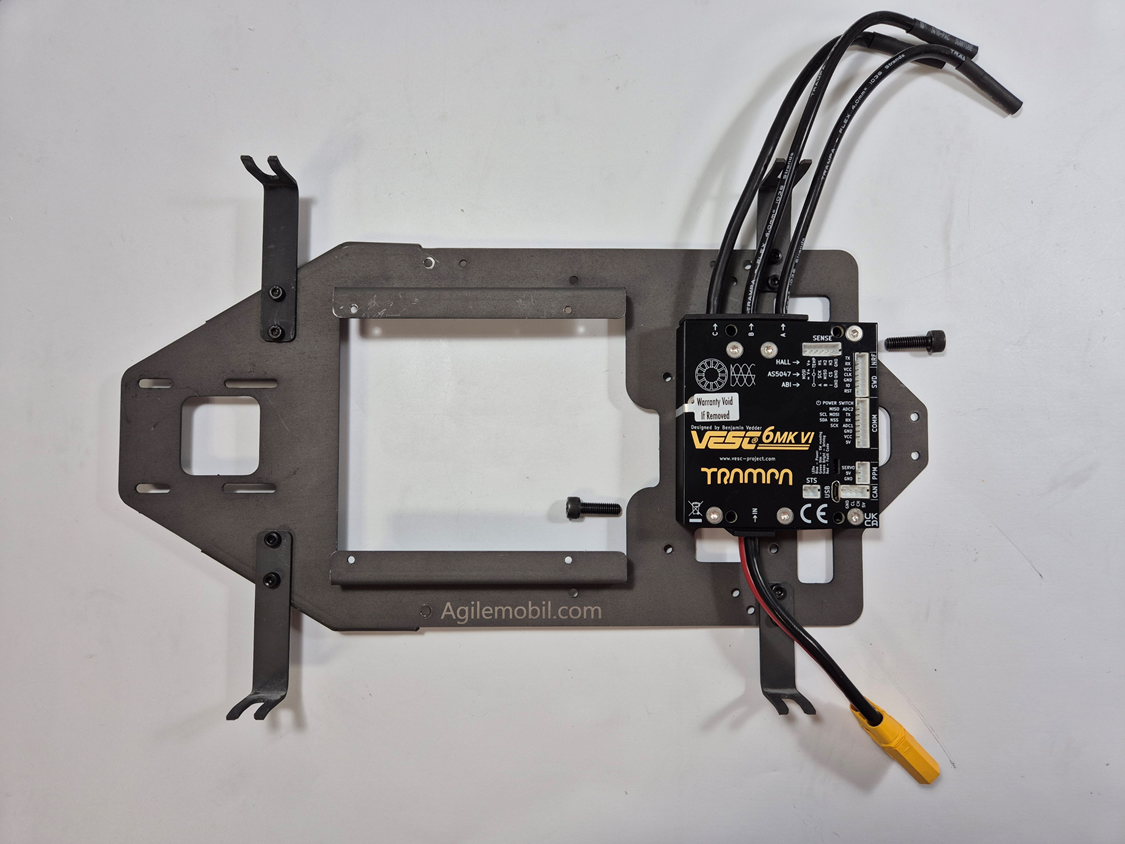

VESC assembled on the deck

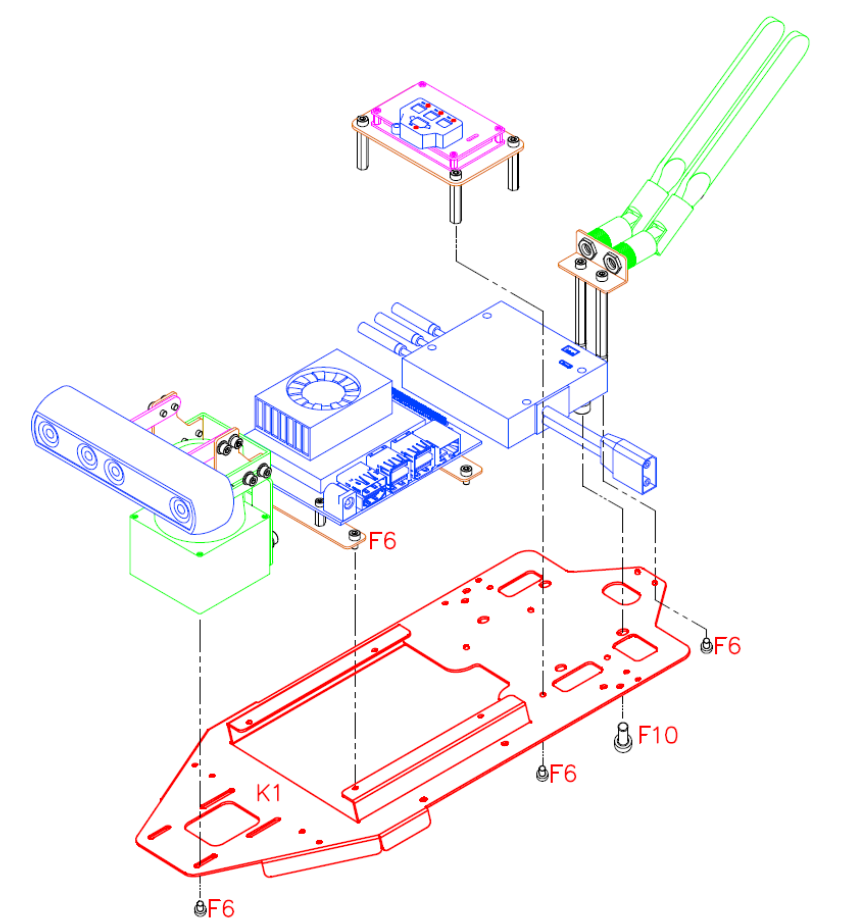

WiFi antenna module parts view

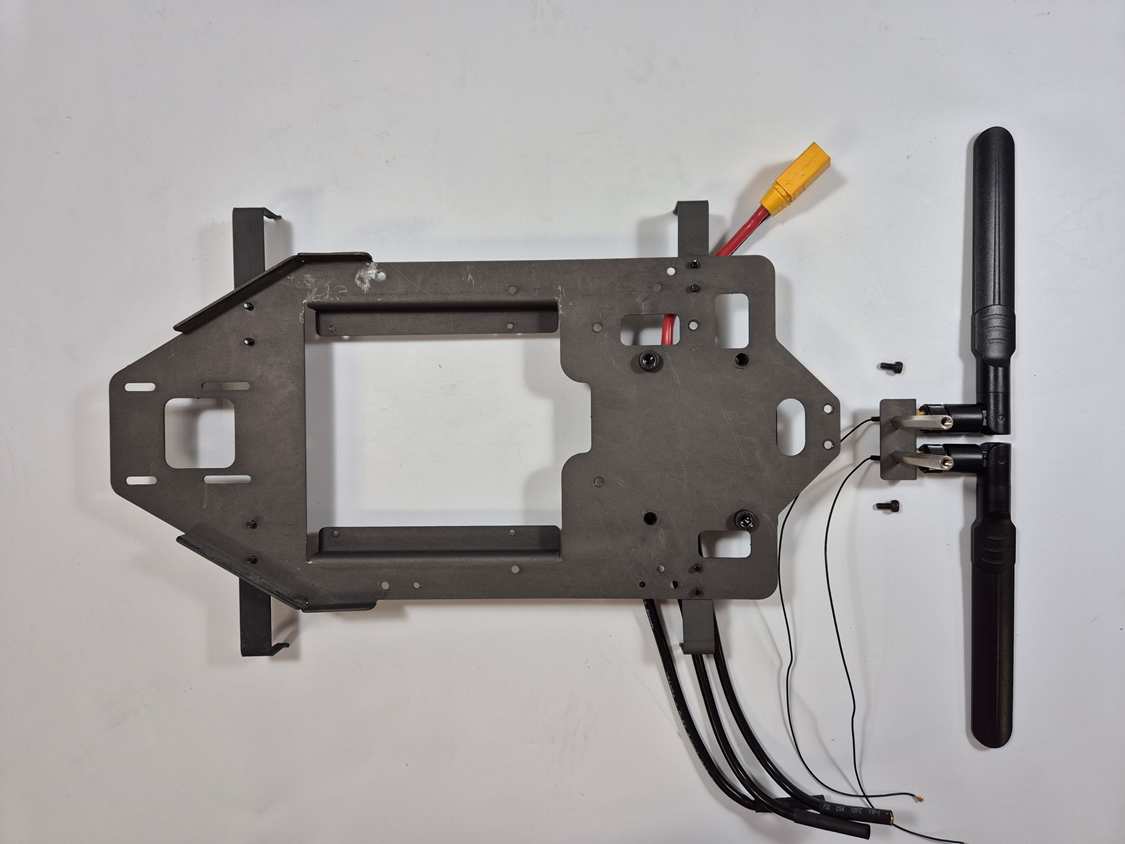

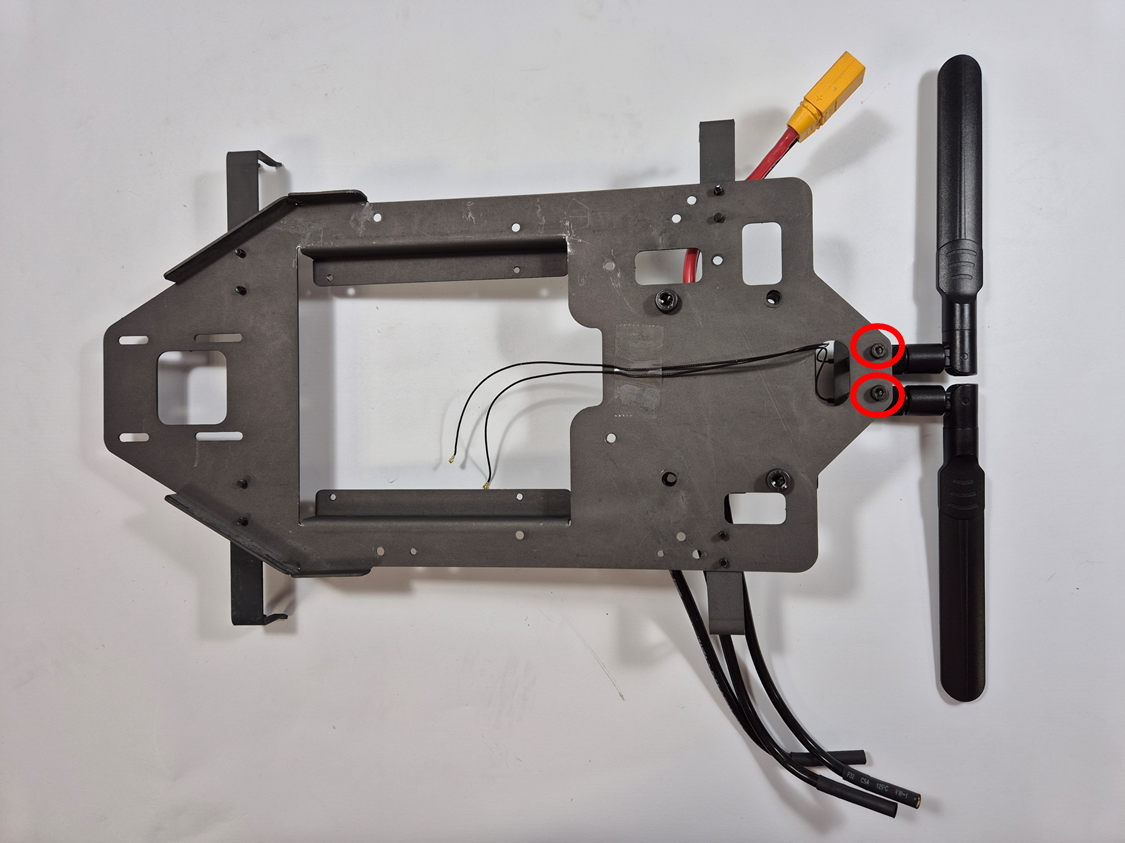

WiFi antenna module assembled on the deck
Sensor module parts (F6, F12)
Sensor module assembled

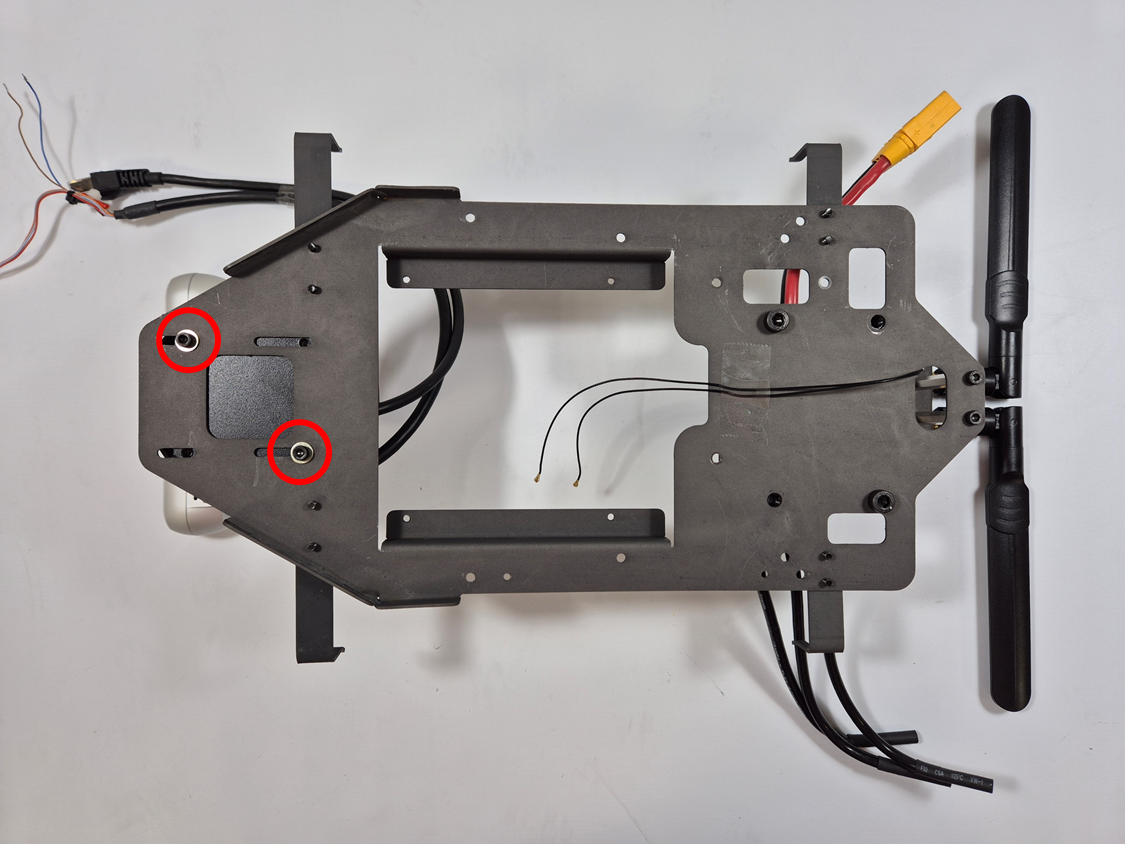

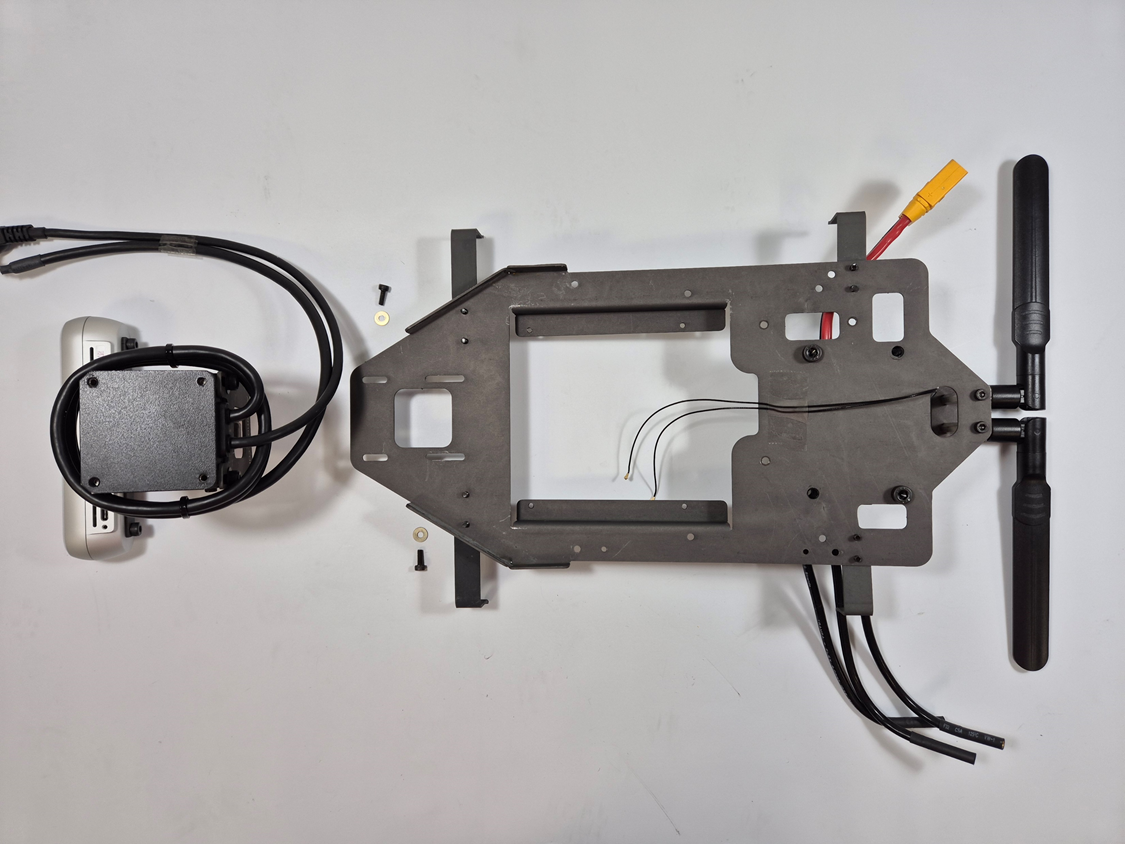

Power module parts view
Power module
positioned
on the deck
Power module
assembled
on the deck

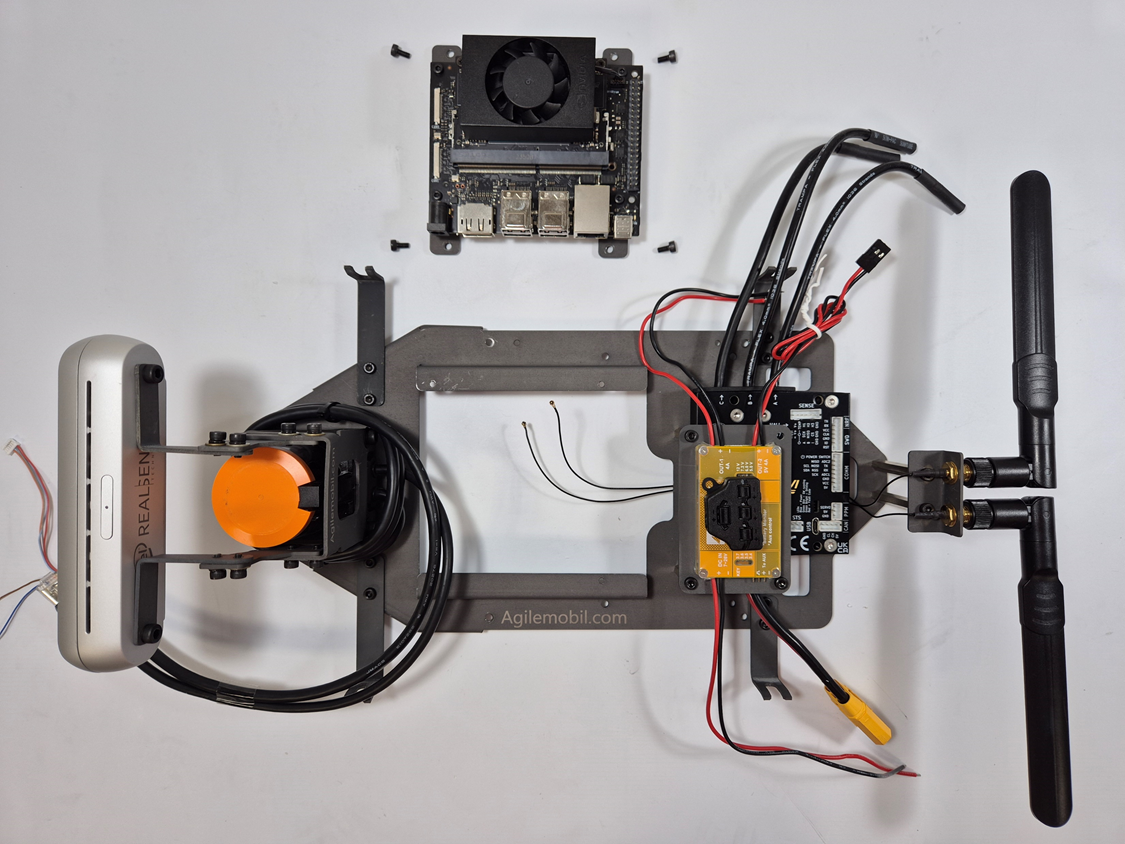

Compute module parts

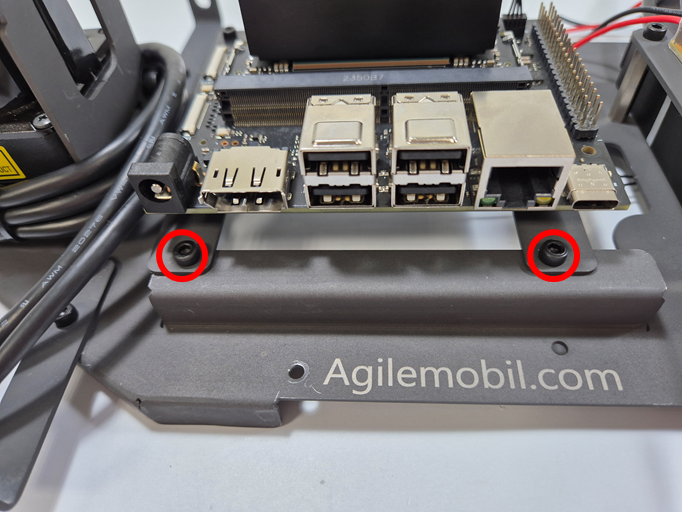

Compute module assembled on the deck

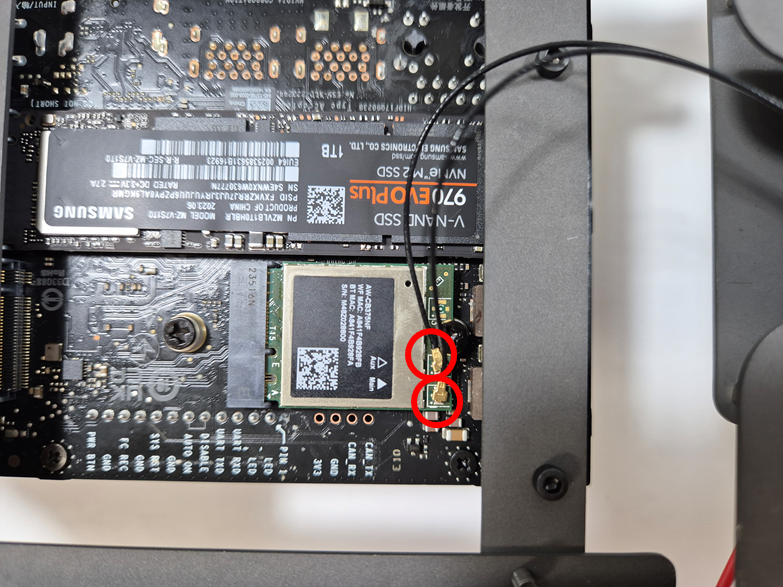

WiFi antenna cables connected

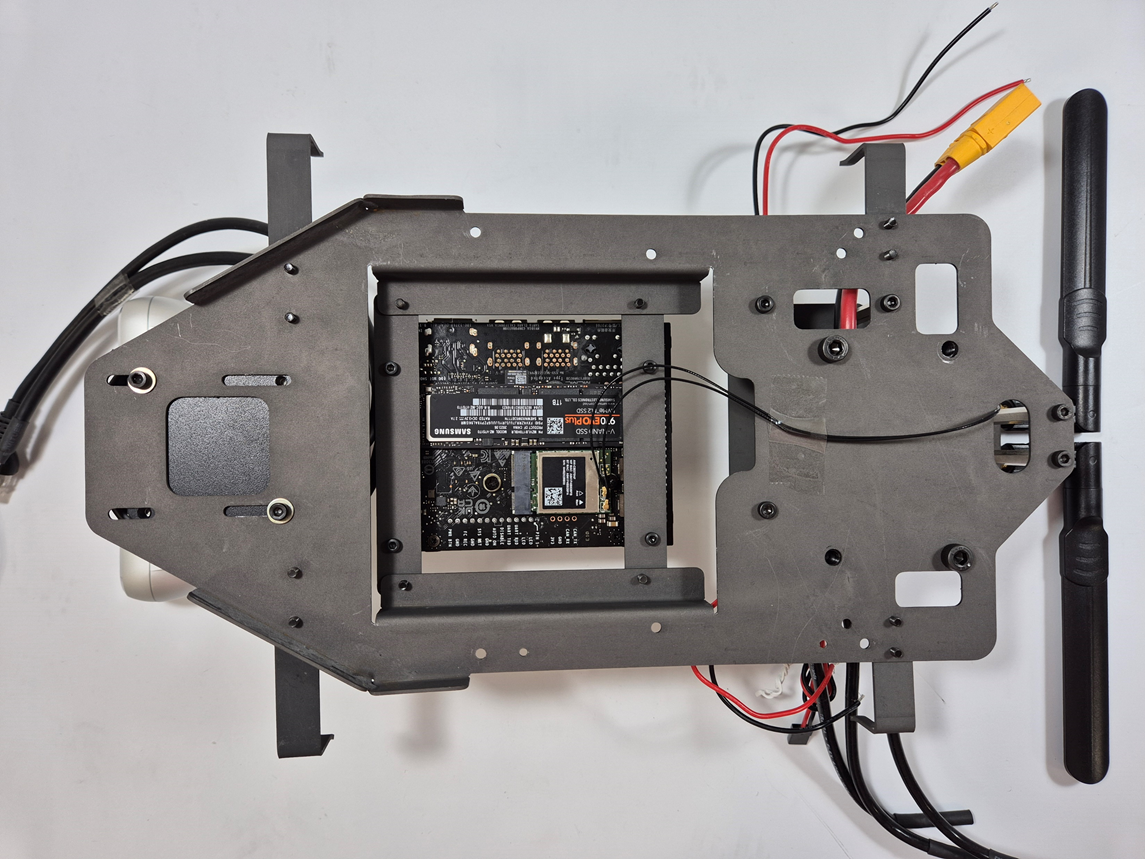

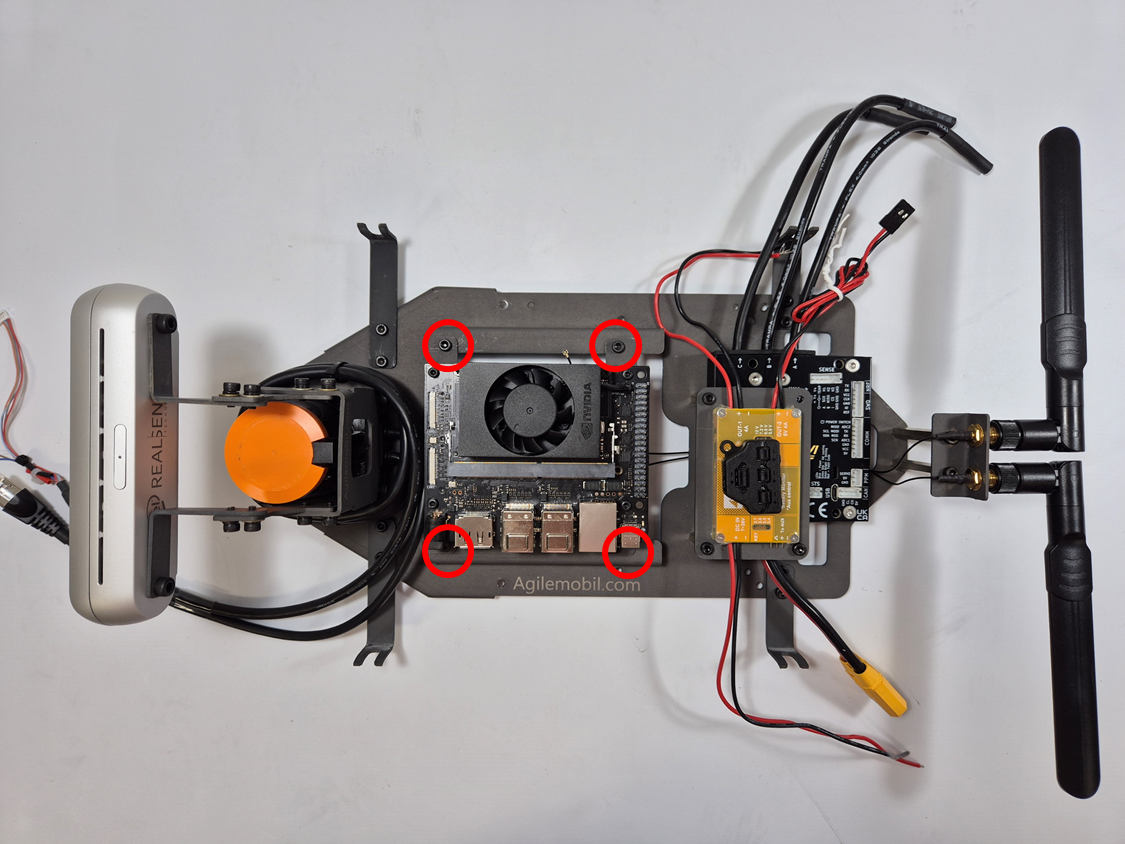

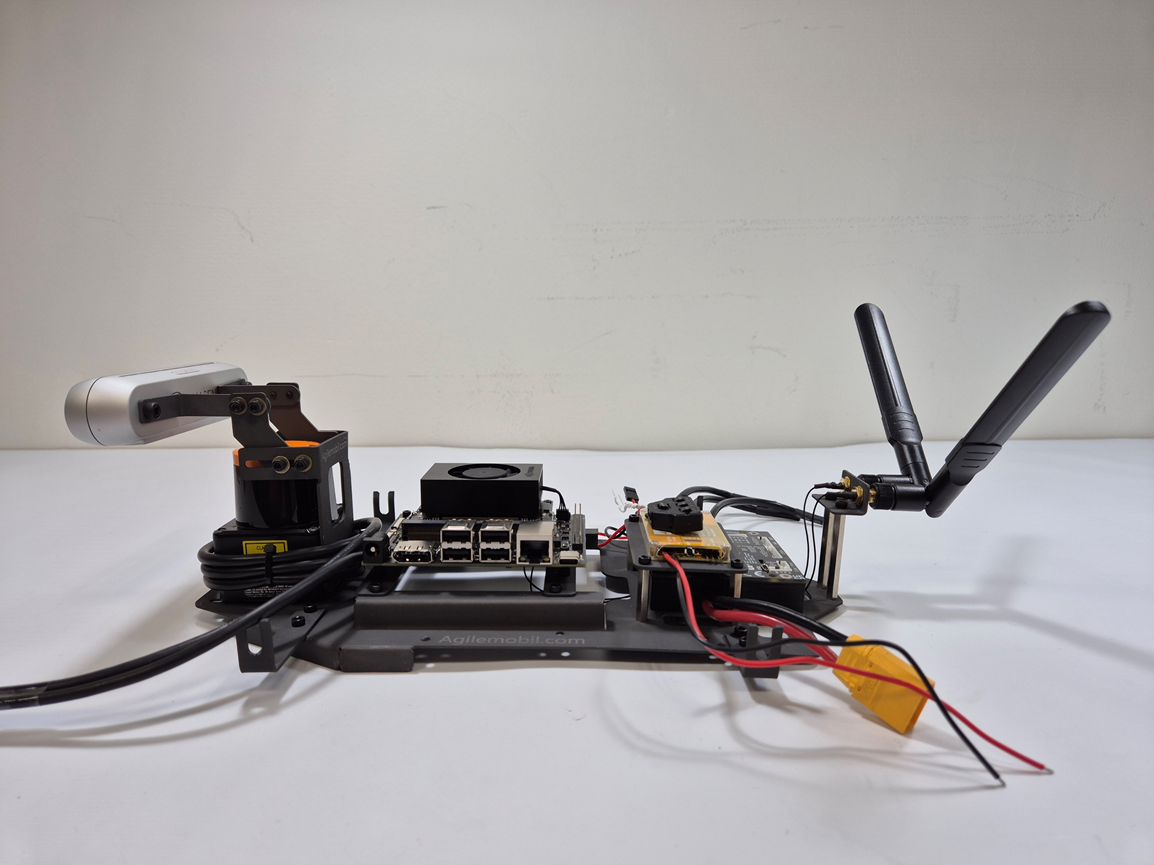

All modules assembled

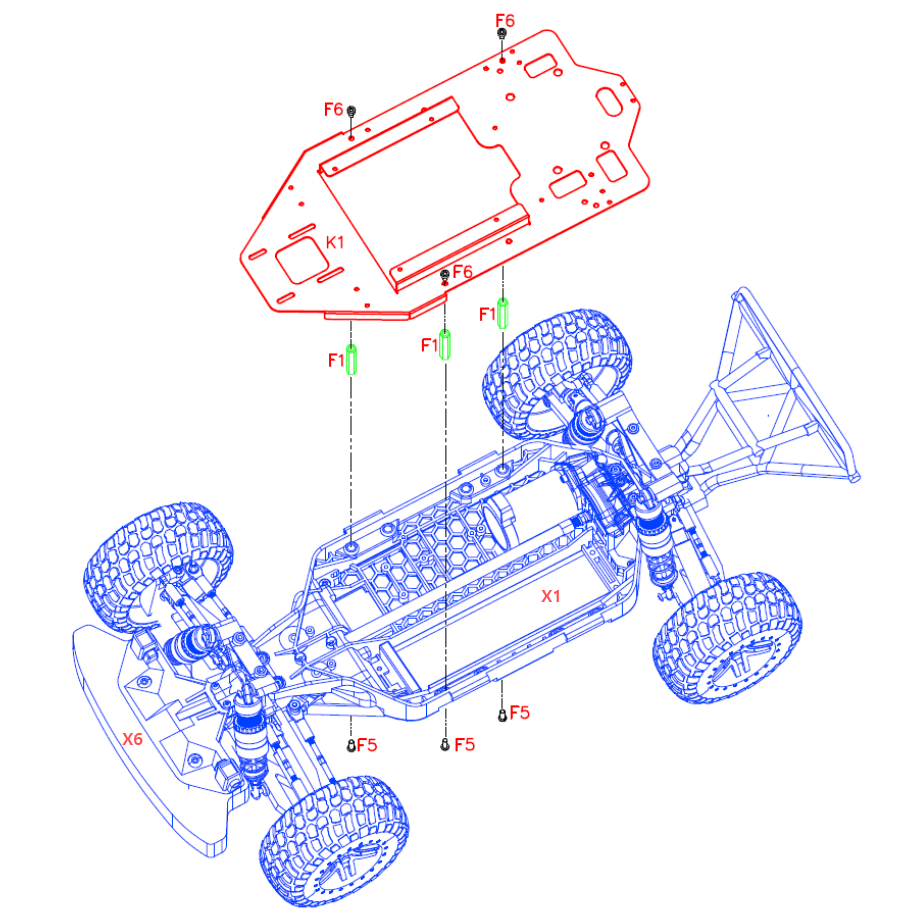

Upper Chassis + Lower Chassis
Parts (Upper Chassis + Lower Chassis)
| No. | Part No. |
Name (related Tool) |
Q'ty | Picture |
|---|---|---|---|---|
| 1 | F6 |
Hex Bolt M3 x 6 (with T3) |
3 |
|
Tools (Upper Chassis + Lower Chassis)
| No. | Tool No. |
Name (related fastener) |
Q'ty | Picture |
|---|---|---|---|---|
| 1 | T3 |
Hex Wrench 2.5mm
(for F6) |
1 |
|

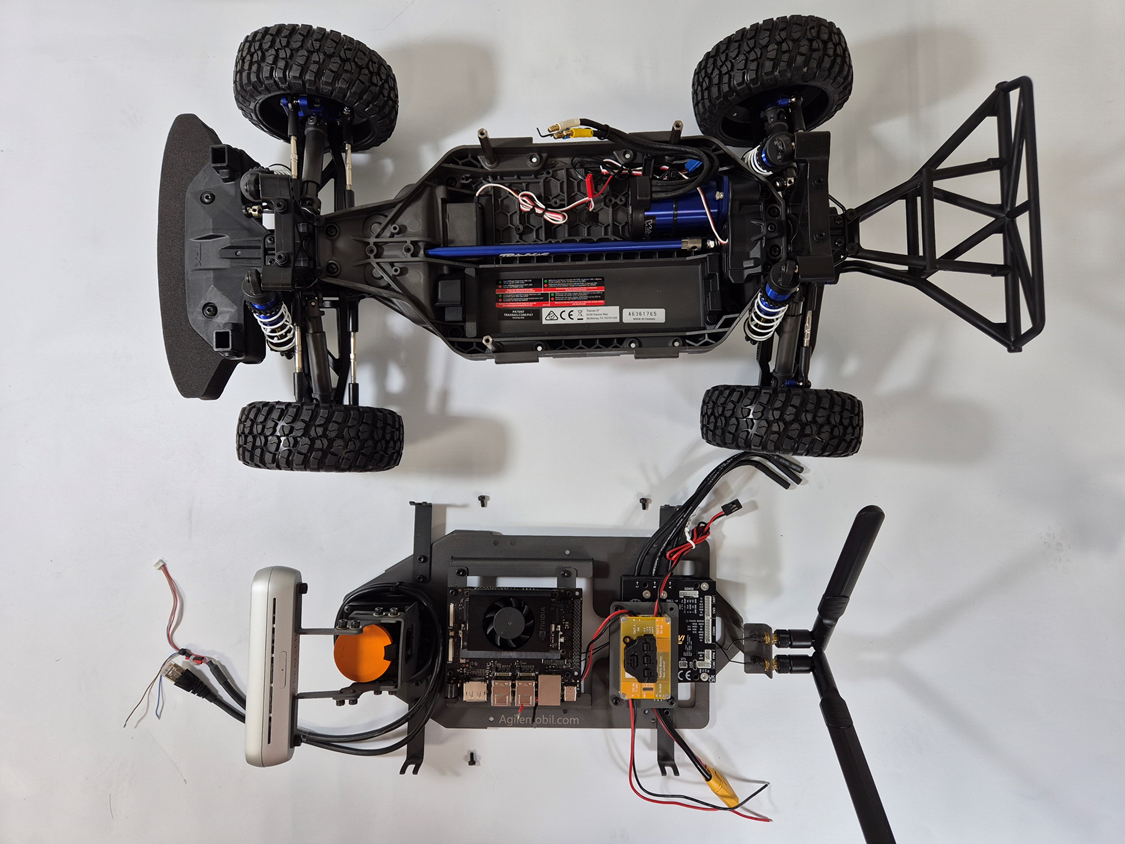

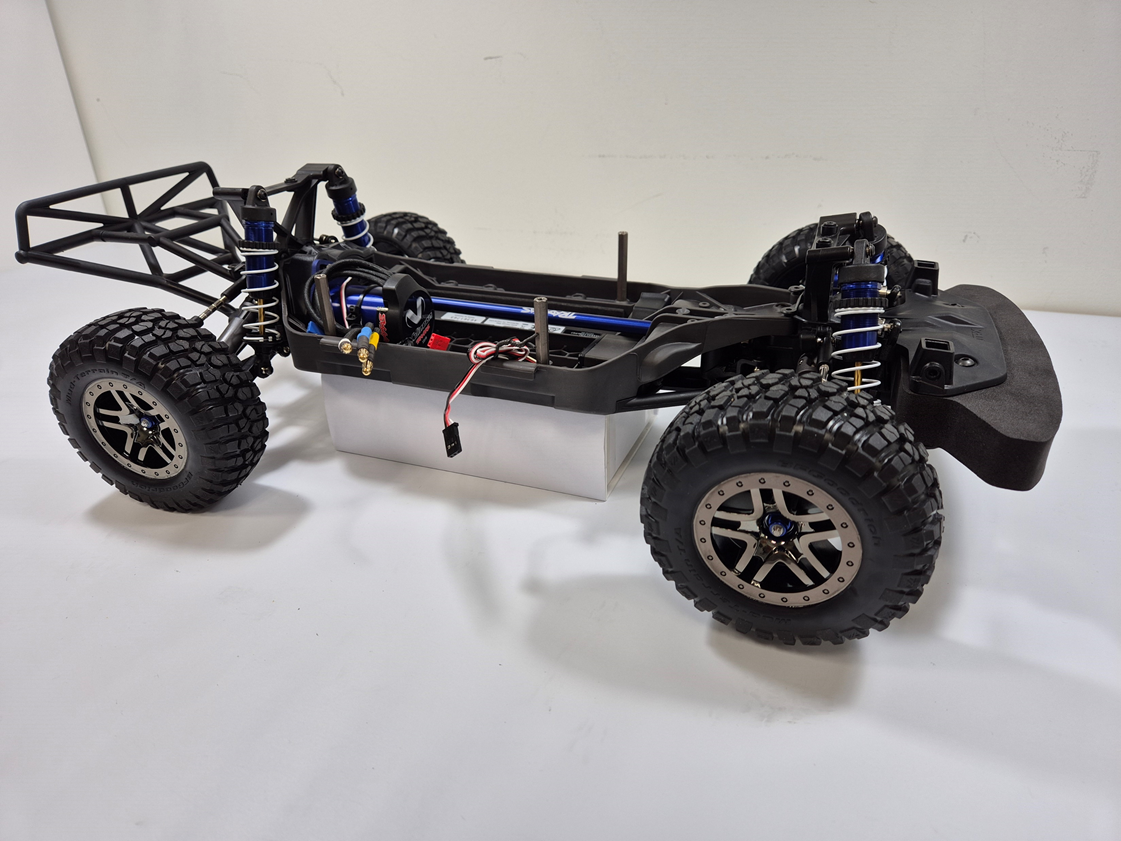

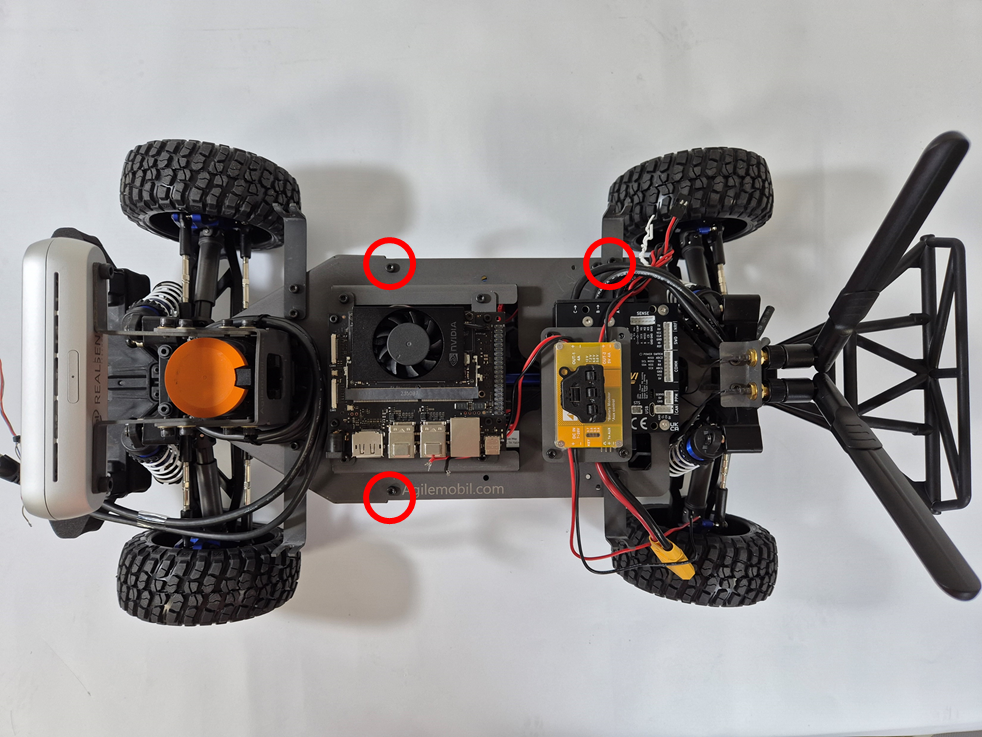

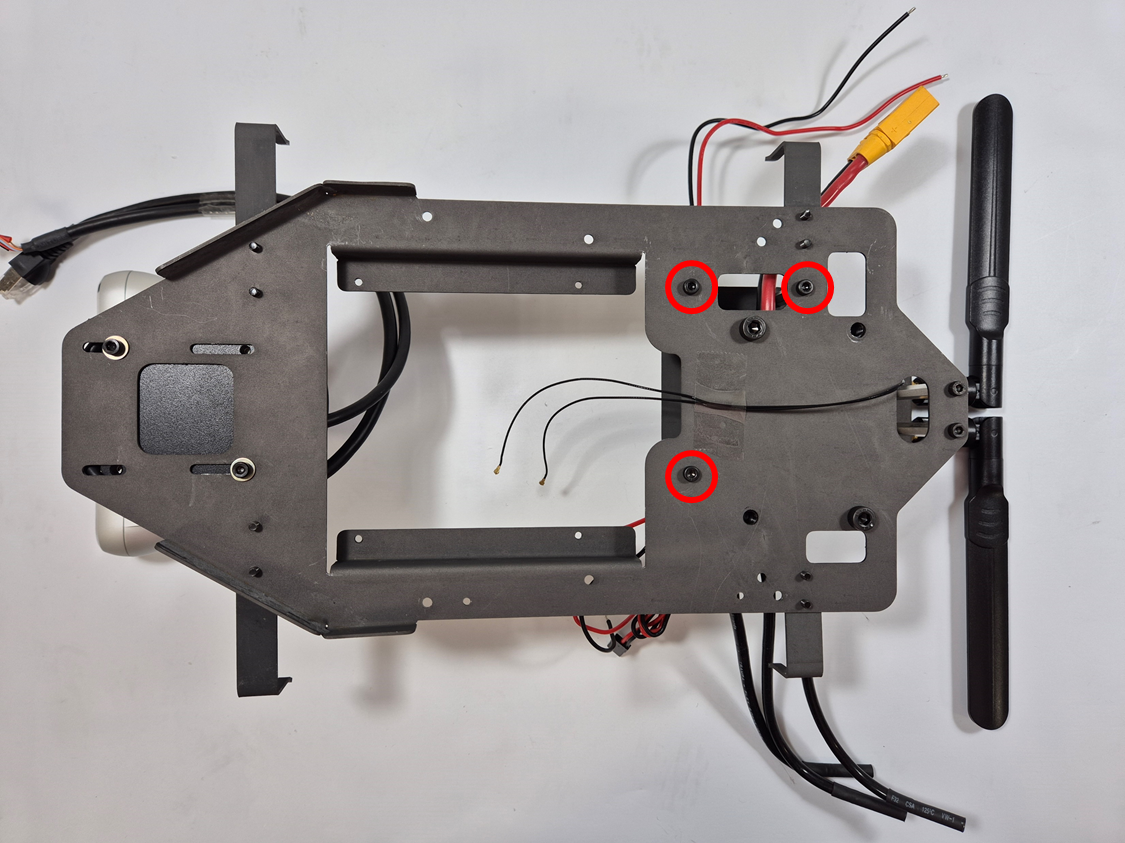

Both chassis to be assembled

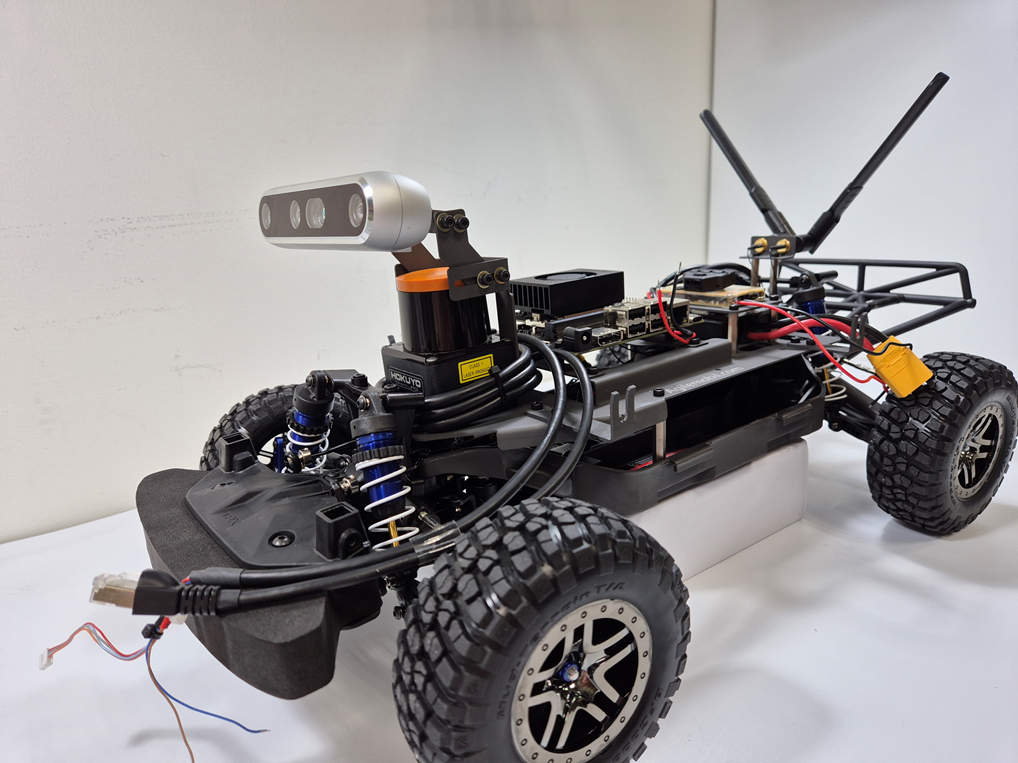

Both chassis assembled together
